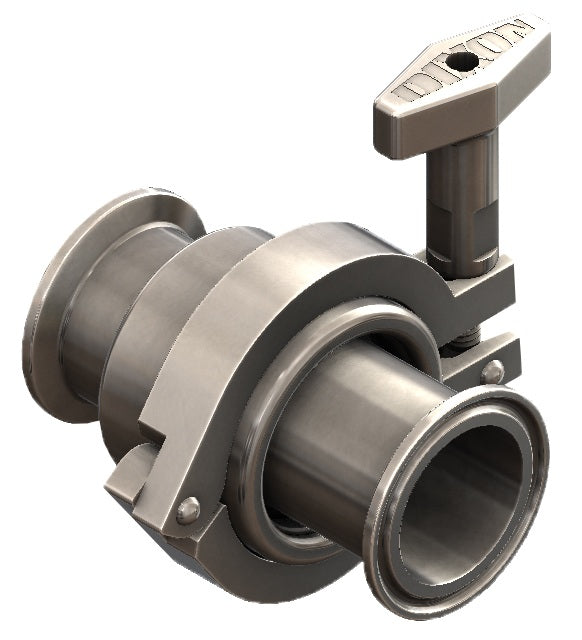

SJSS150ECC120 Dixon Valve SJSS Series Sanitary Swivel - 1-1/2" - Style 20 - Clamp Ends - EPDM - 316L Stainless Steel

SJSS150ECC120 Dixon Valve SJSS Series Sanitary Swivel - 1-1/2" - Style 20 - Clamp Ends - EPDM - 316L Stainless Steel

Save $340.53 Save $340.53
$851.33
$851.33 - $851.33
$851.33
$510.80
$510.80 - $510.80
$510.80

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 20 - Clamp Ends - EPDM - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS150ECC120 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Construction:
  • 316L Stainless Steel
  • PTFE with EPDM seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Dimensions Repair Kit
Part Number
SJSS100ECC120 1" 500 PSI @ 70°F
300 PSI @ 250°F		 1.4881 SJSS100ECC120.pdf SJSS-REPAR-E100
SJSS150ECC120 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 1.8078 SJSS150ECC120.pdf SJSS-REPAR-E150
SJSS200ECC120 2" 450 PSI @ 70°F
250 PSI @ 250°F		 2.2421 SJSS200ECC120.pdf SJSS-REPAR-E200
SJSS250ECC120 2-1/2" 400 PSI @ 70°F
200 PSI @ 250°F		 3.0600 SJSS250ECC120.pdf SJSS-REPAR-E250
SJSS300ECC120 3" 350 PSI @ 70°F
175 PSI @ 250°F		 4.6032 SJSS300ECC120.pdf SJSS-REPAR-E300
SJSS400ECC120 4" - - - SJSS-REPAR-E400
