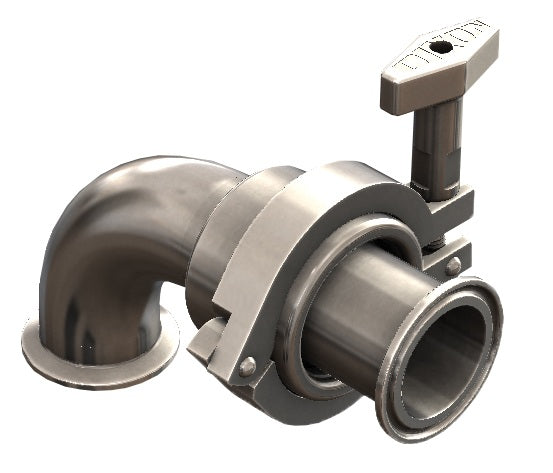

SJSS200SCC130 Dixon Valve SJSS Series Sanitary Swivel - 2" - Style 30 - Clamp Ends - Silicone - 316L Stainless Steel

SJSS200SCC130 Dixon Valve SJSS Series Sanitary Swivel - 2" - Style 30 - Clamp Ends - Silicone - 316L Stainless Steel

Save $527.31 Save $527.31
$1,318.27
$1,318.27 - $1,318.27
$1,318.27
$790.96
$790.96 - $790.96
$790.96

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 30 - Clamp Ends - Silicone - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS200SCC130 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Construction:
  • 316L Stainless Steel
  • PTFE with Silicone seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100SCC130 1" 500 PSI @ 70°F
300 PSI @ 250°F		 1.6716 SJSS-REPAR-S100
SJSS150SCC130 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 2.0898 SJSS-REPAR-S150
SJSS200SCC130 2" 500 PSI @ 70°F
300 PSI @ 250°F		 2.7986 SJSS-REPAR-S200
SJSS250SCC130 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.9157 SJSS-REPAR-S250
SJSS300SCC130 3" 500 PSI @ 70°F
300 PSI @ 250°F		 5.8548 SJSS-REPAR-S300
SJSS400SCC130 4" - - SJSS-REPAR-S400
