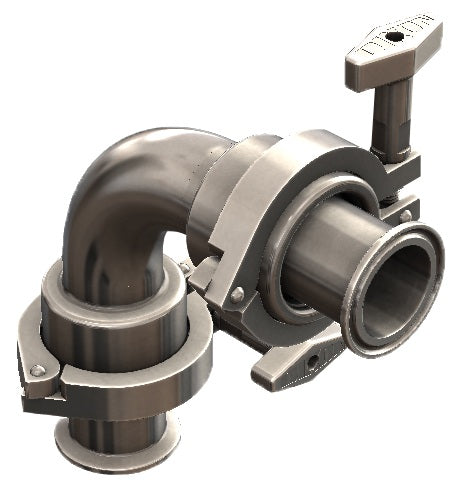

SJSS200SCC160 Dixon Valve SJSS Series Sanitary Swivel - 2" - Style 60 - Clamp Ends - Silicone - 316L Stainless Steel

SJSS200SCC160 Dixon Valve SJSS Series Sanitary Swivel - 2" - Style 60 - Clamp Ends - Silicone - 316L Stainless Steel

Save $782.41 Save $782.41
$1,956.02
$1,956.02 - $1,956.02
$1,956.02
$1,173.61
$1,173.61 - $1,173.61
$1,173.61

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 60 - Clamp Ends - Silicone - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS200SCC160 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Construction:
  • 316L Stainless Steel
  • PTFE with Silicone seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100SCC160 1" 500 PSI @ 70°F
300 PSI @ 250°F		 2.8201 SJSS-REPAR-S100
SJSS150SCC160 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.6995 SJSS-REPAR-S150
SJSS200SCC160 2" 500 PSI @ 70°F
300 PSI @ 250°F		 4.7873 SJSS-REPAR-S200
SJSS250SCC160 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 6.6714 SJSS-REPAR-S250
SJSS300SCC160 3" 500 PSI @ 70°F
300 PSI @ 250°F		 10.0497 SJSS-REPAR-S300
SJSS400SCC160 4" - - SJSS-REPAR-S400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
