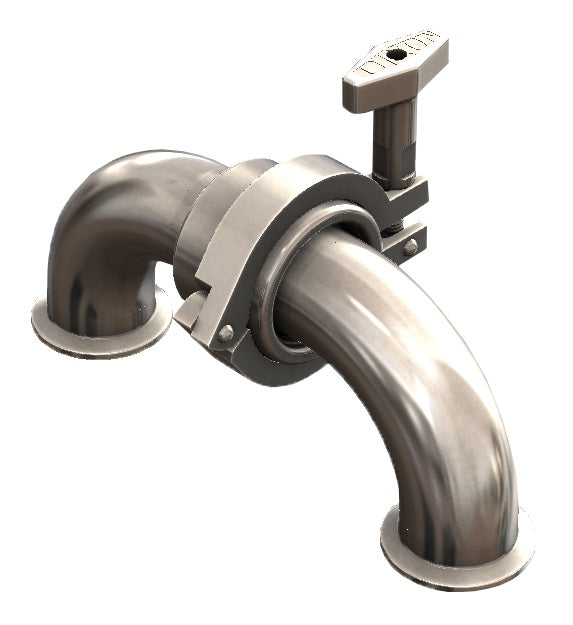

SJSS300ECC140 Dixon Valve SJSS Series Sanitary Swivel - 3" - Style 40 - Clamp Ends - EPDM - 316L Stainless Steel

SJSS300ECC140 Dixon Valve SJSS Series Sanitary Swivel - 3" - Style 40 - Clamp Ends - EPDM - 316L Stainless Steel

Save $919.03 Save $919.03
$2,297.58
$2,297.58 - $2,297.58
$2,297.58
$1,378.55
$1,378.55 - $1,378.55
$1,378.55

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 40 - Clamp Ends - EPDM - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS300ECC140 Dixon
Shape (Orientation): 180 Degree
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Construction:
  • 316L Stainless Steel
  • PTFE with EPDM seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100ECC140 1" 500 PSI @ 70°F
300 PSI @ 250°F		 1.7757 SJSS-REPAR-E100
SJSS150ECC140 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 2.3585 SJSS-REPAR-E150
SJSS200ECC140 2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.2846 SJSS-REPAR-E200
SJSS250ECC140 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 4.6722 SJSS-REPAR-E250
SJSS300ECC140 3" 500 PSI @ 70°F
300 PSI @ 250°F		 7.0116 SJSS-REPAR-E300
SJSS400ECC140 4" - - SJSS-REPAR-E400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
