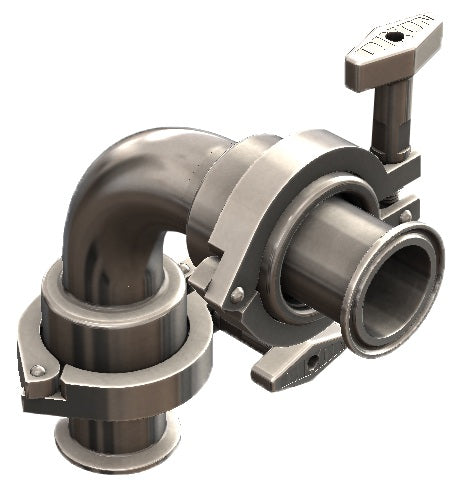

SJSS300ECC160 Dixon Valve SJSS Series Sanitary Swivel - 3" - Style 60 - Clamp Ends - EPDM - 316L Stainless Steel

SJSS300ECC160 Dixon Valve SJSS Series Sanitary Swivel - 3" - Style 60 - Clamp Ends - EPDM - 316L Stainless Steel

Save $1,136.87 Save $1,136.87
$2,842.18
$2,842.18 - $2,842.18
$2,842.18
$1,705.31
$1,705.31 - $1,705.31
$1,705.31

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 60 - Clamp Ends - EPDM - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS300ECC160 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Construction:
  • 316L Stainless Steel
  • PTFE with EPDM seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100ECC160 1" 500 PSI @ 70°F
300 PSI @ 250°F		 2.8157 SJSS-REPAR-E100
SJSS150ECC160 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.7436 SJSS-REPAR-E150
SJSS200ECC160 2" 500 PSI @ 70°F
300 PSI @ 250°F		 4.7873 SJSS-REPAR-E200
SJSS250ECC160 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 6.6626 SJSS-REPAR-E250
SJSS300ECC160 3" 500 PSI @ 70°F
300 PSI @ 250°F		 10.0453 SJSS-REPAR-E300
SJSS400ECC160 4" - - SJSS-REPAR-E400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
