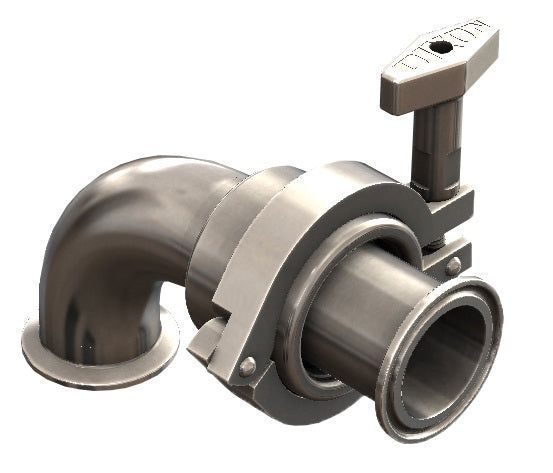

SJSS400ECC130 Dixon Valve SJSS Series Sanitary Swivel - 4" - Style 30 - Clamp Ends - EPDM - 316L Stainless Steel

SJSS400ECC130 Dixon Valve SJSS Series Sanitary Swivel - 4" - Style 30 - Clamp Ends - EPDM - 316L Stainless Steel

Save $1,082.82 Save $1,082.82
$2,707.05
$2,707.05 - $2,707.05
$2,707.05
$1,624.23
$1,624.23 - $1,624.23
$1,624.23

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 30 - Clamp Ends - EPDM - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS400ECC130 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Construction:
  • 316L Stainless Steel
  • PTFE with EPDM seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100ECC130 1" 500 PSI @ 70°F
300 PSI @ 250°F		 1.6694 SJSS-REPAR-E100
SJSS150ECC130 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 2.1118 SJSS-REPAR-E150
SJSS200ECC130 2" 500 PSI @ 70°F
300 PSI @ 250°F		 2.7986 SJSS-REPAR-E200
SJSS250ECC130 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.9113 SJSS-REPAR-E250
SJSS300ECC130 3" 500 PSI @ 70°F
300 PSI @ 250°F		 5.8526 SJSS-REPAR-E300
SJSS400ECC130 4" - - SJSS-REPAR-E400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
