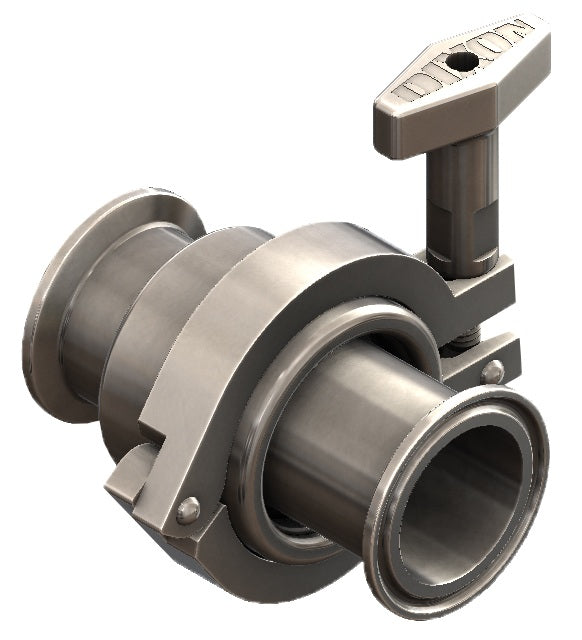

SJSS400SCC120 Dixon Valve SJSS Series Sanitary Swivel - 4" - Style 20 - Clamp Ends - Silicone - 316L Stainless Steel

SJSS400SCC120 Dixon Valve SJSS Series Sanitary Swivel - 4" - Style 20 - Clamp Ends - Silicone - 316L Stainless Steel

Save $99.44 Save $99.44
$1,651.29
$1,651.29 - $1,651.29
$1,651.29
$1,551.85
$1,551.85 - $1,551.85
$1,551.85

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 20 - Clamp Ends - Silicone - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS400SCC120 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Construction:
  • 316L Stainless Steel
  • PTFE with Silicone seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Dimensions Weight Repair Kit
Part Number
SJSS100SCC120 1" 500 PSI @ 70°F
300 PSI @ 250°F		 SJSS100SCC120.pdf 1.4903 SJSS-REPAR-S100
SJSS150SCC120 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 SJSS150SCC120.pdf 1.7857 SJSS-REPAR-S150
SJSS200SCC120 2" 450 PSI @ 70°F
250 PSI @ 250°F		 SJSS200SCC120.pdf 2.2421 SJSS-REPAR-S200
SJSS250SCC120 2-1/2" 400 PSI @ 70°F
200 PSI @ 250°F		 SJSS250SCC120.pdf 3.0644 SJSS-REPAR-S250
SJSS300SCC120 3" 350 PSI @ 70°F
175 PSI @ 250°F		 SJSS300SCC120.pdf 4.6055 SJSS-REPAR-S300
SJSS400SCC120 4" - - - SJSS-REPAR-S400
