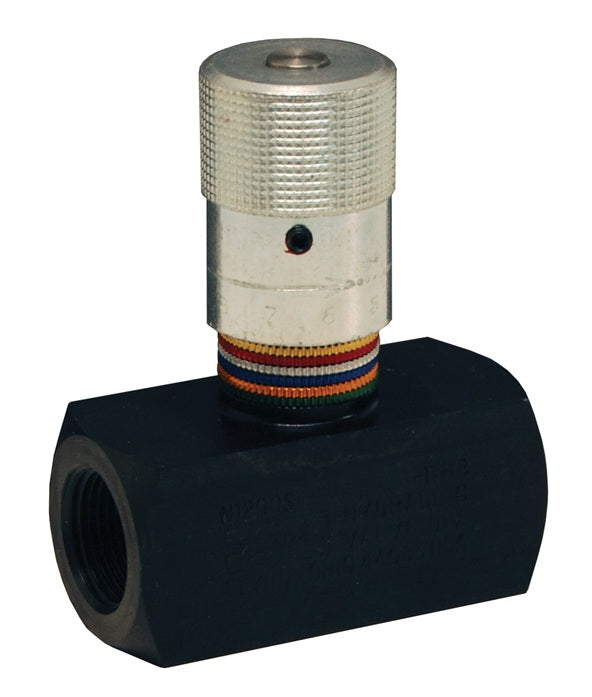

SN200 by Dixon Valve | Flow Control Valve | Series N | 1/8" Female NPTF x 1/8" Female NPTF | Steel

Name: SN200 by Dixon Valve | Flow Control Valve | Series N | 1/8" Female NPTF x 1/8" Female NPTF | Steel
Brand: Dixon
SKU: SN200 Dixon
Price: 70.0 USD
Availability: InStock

Save $46.67

$116.67

$116.67 - $116.67

$116.67

$70.00

$70.00 - $70.00

$70.00

Dixon Valve & Coupling
Flow Control Valve | Series N | Steel

Ideal for use as speed control on hydraulic systems where a reverse flow check valve is not needed.

Specifications for Variant SKU: SN200 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s):	Steel

Features:
Provides excellent control and reliable shutoff in a very small envelope. Color-coded reference scale on the adjusting knob simplifies setting, resetting, adjusting and quick return to a previous speed setting.
Materials:
Steel
Specifications:
Maximum operating pressure: 5000 PSI at 70°F (21°C) for 1/8" - 3/4" 3000 PSI at 70°F (21°C) for 1" - 1-1/4"

Part Number	Female NPTF x Female NPTF
SN200	1/8"
SN400	1/4"
SN600	3/8"
SN800	1/2"
SN1200	3/4"
SN1600	1"
SN2000	1-1/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
