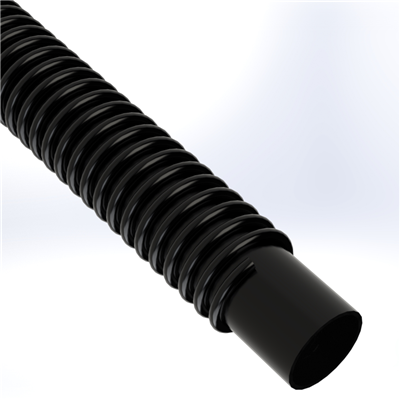

SP-VAC-3.0-100 by Texcel | SIGMA-ULTRAVAC™ Series | Polyurethane Vacuum Hose | 3" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length

SP-VAC-3.0-100 by Texcel | SIGMA-ULTRAVAC™ Series | Polyurethane Vacuum Hose | 3" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length

Save $370.91 Save $370.91
$1,298.19
$1,298.19 - $1,298.19
$1,298.19
$927.28
$927.28 - $927.28
$927.28

SIGMA by Texcel
ULTRAVAC™ Series | Polyurethane Vacuum Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SP-VAC-3.0-100- Texcel | 100 |
Brand: SIGMA
Series: SIGMA-ULTRAVAC™ Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.59in
Tubing Construction: Polyurethane
Cover Construction: PVC
Technical Data:
Description: Heavy-duty, abrasion-resistant suction hose for use in a variety of wet and dry, industrial vacuum applications including: vacuum trucks, hydro-excavators, sewer cleaners, street sweepers. SIGMA-ULTRAVAC™ is ideal for handling a wide range of materials, such as crushed rock, sand, pea gravel, dry-cement, grains and slurries. Made of with a permanently conductive tube that remains flexible at low temperatures for ease of handling. Construction: Smooth permanently conductive, high abrasion resistant, polyurethane liner with a black, specially formulated polymer and a rigid PVC right-handed helix
Safety Factor: 3:1 Temperature: -40°F to +158°F
Branding: TEXCEL® SIGMA-ULTRAVAC™ - POLYURETHANE SUCTION HOSE -LOT Safety Note: NOT recommended for constant contact with fuels or petroleum products
Service temperature depends on actual application
Compared To: ARVAC-SW Features: Superior flexibility at low temperatures
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft
SP-VAC-2.0-100 2" 2-36/64" 100' 30 29 2" 0.74 lbs
SP-VAC-3.0-100 3" 3-38/64" 100' 30 29 3" 1.11 lbs
SP-VAC-4.0-100 4" 4-47/64" 100' 30 29 4" 1.80 lbs
SP-VAC-5.0-100 5" 5-34/64" 100' 30 27 6" 2.32 lbs
SP-VAC-6.0-100 6" 6-49/64" 100' 15 27 8" 2.86 lbs
SP-VAC-8.0-50 8" 8-7/8" 50' 15 27 14" 4.27 lbs
