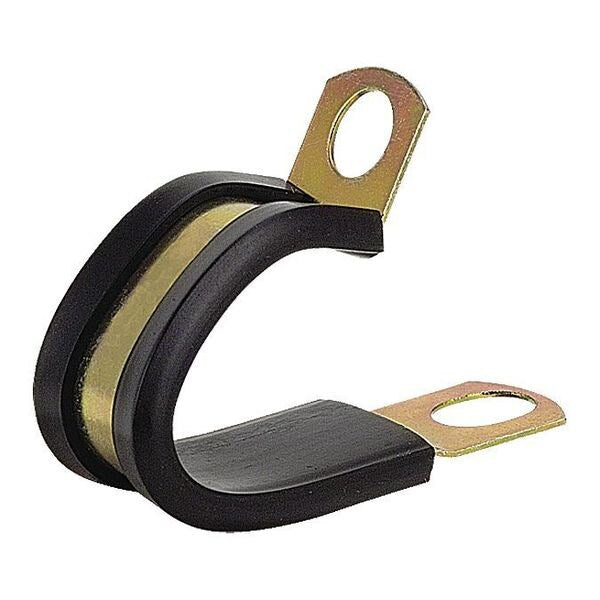

SPD-12 by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diamter: 3/4" | Plated Steel
SPD-12 by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diamter: 3/4" | Plated Steel

SPD-12 by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diamter: 3/4" | Plated Steel

Save $2.87 Save $2.87
$4.85
$4.85 - $4.85
$4.85
$1.98
$1.98 - $1.98
$1.98

Foster
SPD Loop Clamps | 2-Tube Cushioned Cable Clamps, Plated Steel 3/4" (19mm) Wide
Specifications for Variant SKU: SPD-12 Zsi-Foster
Series: SPD Series
Material(s): Plated Steel, EPDM
Clamp Width: .75
Maximum Clamp I.D.: 0.75
Features:
  • Medium duty steel clamp that can be slipped over two tubes or multiple wires and closed with a bolt at assembly.
  • Steel clamps are zinc electroplate for corrosion resistance
  • E.P.D.M. cushion for electrical insulation and vibration absorption
  • Temperature range -50°F to +275°F (-45°C to 135°C)

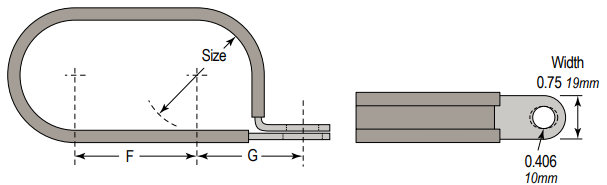

Part Number Clamp ID F G
SPD-08 1/2" 0.500" 0.764"
SPD-12 3/4" 0.750" 0.889"
SPD-16 1" 1.000" 1.014"
SPD-20 1-1/4" 1.125" 1.159"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
