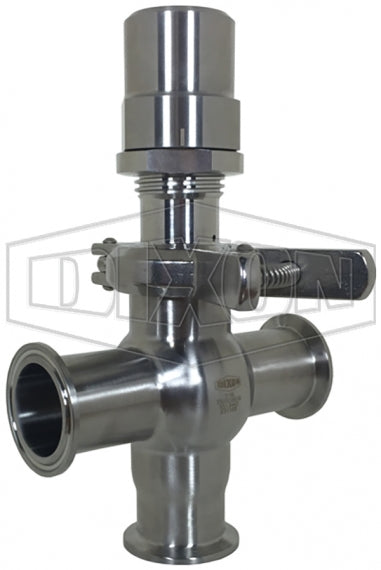

SPR-TCE3A150 Dixon Valve 1-1/2" Sanitary Pressure Relief Valve - T Style - Clamp x Clamp - Set Pressure Range: 0-300 PSI - EPDM Seat - 316 Stainless Steel

SPR-TCE3A150 Dixon Valve 1-1/2" Sanitary Pressure Relief Valve - T Style - Clamp x Clamp - Set Pressure Range: 0-300 PSI - EPDM Seat - 316 Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
Sanitary Pressure Relief Valve - T Style - Clamp x Clamp - 316 Stainless Steel

Suitable for liquids and gas.
Specifications for Variant SKU: SPR-TCE3A150 Dixon
Shape (Orientation): Tee
Ends Configuration: 1-1/2in Sanitary Clamp End, 1-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316 Stainless Steel, 304 Stainless Steel
Features:
  • Valve opens when the set pressure is reached to prevent excess pressure in piping or systems.
  • Valve body made from solid bar.
  • Patented squeeze clamp.
  • Low spare part cost.
  • Clamp End connection.
  • Actuation: Manual.
  • Maximum Operating Temperature [Sterilization]: 300°F (148°C) (Maximum 20 min)
Materials:
  • Wetted Product Surfaces: 32Ra
  • Product Contact: 316L Stainless Steel
  • Non product contact: 304 Stainless Steel
Specifications:
  • 3-A Certified
Spring Set Maximum Set Pressure (PSI) PSI / Turn Turns to Max Set Pressure
1 50 PSI 11 4-1/2
2 100 PSI 21 4-3/4
3 300 PSI 105 2-3/4
Part Number Size Set Pressure Range Seat Dimensions
A B C D E
SPR-TCE1A150 1-1/2" 10-50 PSI EPDM 1.50" 9.2" 5.38" 2.48" 2.69"
SPR-TCE1A200 2" 10-50 PSI EPDM 2.00" 9.8" 6.07" 3.22" 4.29"
SPR-TCE2A150 1-1/2" 0-100 PSI EPDM 1.50" 9.2" 5.38" 2.48" 2.69"
SPR-TCE2A200 2" 0-100 PSI EPDM 2.00" 9.8" 6.07" 3.22" 4.29"
SPR-TCE3A150 1-1/2" 0-300 PSI EPDM 1.50" 9.2" 5.38" 2.48" 2.69"
SPR-TCE3A200 2" 0-300 PSI EPDM 2.00" 9.8" 6.07" 3.22" 4.29"
SPR-TCV3A200 2" 0-300 PSI FKM 2.00" 9.8" 6.07" 3.22" 4.29"
