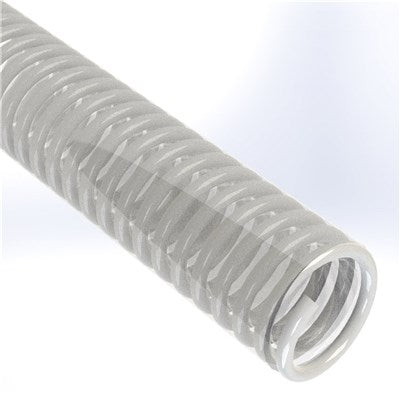

SPVC-CL-3.0-100 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 3" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Clear | 100ft Length

Save $193.33

$676.65

$676.65 - $676.65

$676.65

$483.32

$483.32 - $483.32

$483.32

SIGMA-HD by Texcel
CLEAR PVC™ Series | Heavy-Duty Clear PVC Water Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-CL-3.0-100- Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-HD Series
Hose Color(s):	Clear
Internal Diameter:	3in
Outer Diameter:	3.43in
Tubing Construction:	PVC
Cover Construction:	Vinyl
Special Properties:	Outer Helix Protection

Technical Data:
Description:	Premium, heavy-duty yet economical construction for great durability. Smooth bore allows full production flow.	Construction:	Clear PVC (smooth bore) with a white, tough vinyl helix
Safety Factor:	3:1	Temperature:	-40 F to +150F
Compared To:	110CL/Series H	Branding:	TEXCEL® SIGMA-HD CLEAR PVC™ - HEAVY DUTY WATER SUCTION HOSE -LOT
Safety Note:	Service temperature depends on actual application

Part Number	Hose ID	Hose OD	Working Pressure (psi/bar)	Vacuum (in./HG)	Bend Radius	Lbs./ft
SPVC-CL-.75-100	3/4"	0.95"	100'	100 psi	29	2"	0.20 lbs
SPVC-CL-1.0-100	1"	1.26"	100'	100 psi	29	2.5"	0.27 lbs
SPVC-CL-1.5-100	1-1/2"	1.82"	100'	85 psi	29	4"	0.39 lbs
SPVC-CL-2.0-100	2"	2.39"	100'	70 psi	29	5"	0.57 lbs
SPVC-CL-2.5-100	2-1/2"	2.93"	100'	70 psi	29	6.5"	0.74 lbs
SPVC-CL-3.0-100	3"	3.43"	100'	65 psi	29	8.5"	0.94 lbs
SPVC-CL-4.0-100	4"	4.53"	100'	65 psi	29	12"	1.48 lbs
SPVC-CL-5.0-100	5"	5.55"	100'	50 psi	29	14"	2.15 lbs
SPVC-CL-6.0-100	6"	6.67"	-	50 psi	29	15"	2.89 lbs
SPVC-CL-8.0-20	8"	8.83"	20'	45 psi	29	20"	4.37 lbs

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
