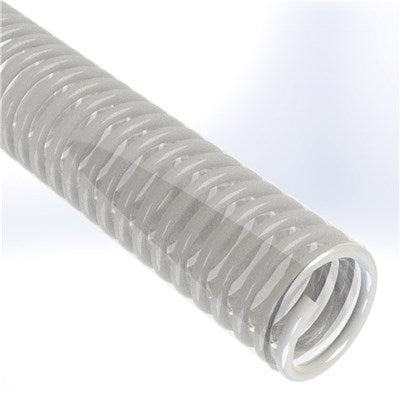

SPVC-CL-1.5-100 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 1-1/2" Hose ID | 85 PSI | 29 in/Hg Vacuum Rated | Clear | 100ft Length

SPVC-CL-1.5-100 by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 1-1/2" Hose ID | 85 PSI | 29 in/Hg Vacuum Rated | Clear | 100ft Length

Save $23.00 Save $23.00
$207.00
$207.00 - $207.00
$207.00
$184.00
$184.00 - $184.00
$184.00

SIGMA-HD by Texcel
CLEAR PVC™ Series | Heavy-Duty Clear PVC Water Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-CL-1.5-100- Texcel | 100 |
Brand: SIGMA
Series: SIGMA-HD Series
Hose Color(s): Clear
Internal Diameter: 1.50in
Outer Diameter: 1.82in
Tubing Construction: PVC
Cover Construction: Vinyl
Special Properties: Outer Helix Protection
Technical Data:
Description: Premium, heavy-duty yet economical construction for great durability. Smooth bore allows full production flow. Construction: Clear PVC (smooth bore) with a white, tough vinyl helix
Safety Factor: 3:1 Temperature: -40 F to +150F
Compared To: 110CL/Series H Branding: TEXCEL® SIGMA-HD CLEAR PVC™ - HEAVY DUTY WATER SUCTION HOSE -LOT
Safety Note: Service temperature depends on actual application
Part Number Hose ID Hose OD Working Pressure (psi/bar) Vacuum (in./HG) Bend Radius Lbs./ft
SPVC-CL-.75-100 3/4" 0.95" 100' 100 psi 29 2" 0.20 lbs
SPVC-CL-1.0-100 1" 1.26" 100' 100 psi 29 2.5" 0.27 lbs
SPVC-CL-1.5-100 1-1/2" 1.82" 100' 85 psi 29 4" 0.39 lbs
SPVC-CL-2.0-100 2" 2.39" 100' 70 psi 29 5" 0.57 lbs
SPVC-CL-2.5-100 2-1/2" 2.93" 100' 70 psi 29 6.5" 0.74 lbs
SPVC-CL-3.0-100 3" 3.43" 100' 65 psi 29 8.5" 0.94 lbs
SPVC-CL-4.0-100 4" 4.53" 100' 65 psi 29 12" 1.48 lbs
SPVC-CL-5.0-100 5" 5.55" 100' 50 psi 29 14" 2.15 lbs
SPVC-CL-6.0 6" 6.67" - 50 psi 29 15" 2.89 lbs
SPVC-CL-8.0-20 8" 8.83" 20' 45 psi 29 20" 4.37 lbs
