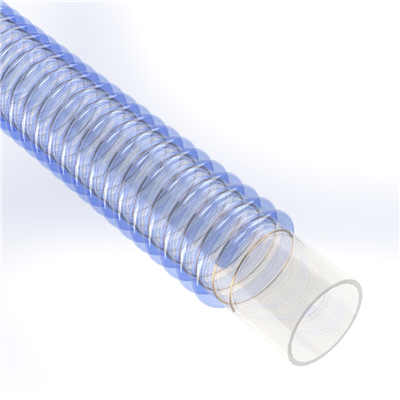

SPVC-FDW-2.0-100 by Texcel | SIGMA-FDW™ Series | FDA PVC Grounded Food-Grade Suction Hose | 2" Hose ID | 40 PSI | 29 in/Hg Vacuum Rated | Blue | 100ft Length

Save $153.20

$536.21

$536.21 - $536.21

$536.21

$383.01

$383.01 - $383.01

$383.01

SIGMA by Texcel
FDW™ Series | FDA PVC Grounded Food-Grade Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-FDW-2.0-100- Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-FDW™ Series
Hose Color(s):	Blue
Internal Diameter:	2in
Outer Diameter:	2.35in
Tubing Construction:	PVC
Special Properties:	Outer Helix Protection

Technical Data:
Description:	Heavy-duty, food-grade suction hose with embedded copper grounding wire for dry/wet material applications. Hose complies with applicable FDA and 3A requirements as well as USDA for use in meat and poultry plants. Clear PVC and clear helix construction allows for visual confirmation of material flow. Smooth bore eliminates material build up. Heavy corrugation provides high flexibility. Embedded wire prevents static electricity build up.	Construction:	Corrugated, clear, flexible PVC with smooth bore and a rigid, clear PVC, right-handed helix with embedded copper wire for static dissipation
Safety Factor:	3:1	Temperature:	-4°F to +150°F
Branding:	TEXCEL® SIGMA-FDW™ - GROUNDED FOOD GRADE SUCTION HOSE - -LOT	Compared To:	WE/ST 200 SFG
Safety Note:	It is recommended that all food grade hose be thoroughly flushed prior to initial use	Features:	FDA, USDA and 3A compliant. Phthalate Free

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
SPVC-FDW-1.5-100	1-1/2"	1.82"	100'	45	29	2.5"	0.44 lbs
SPVC-FDW-2.0-100	2"	2.35"	100'	40	29	3"	0.58 lbs
SPVC-FDW-2.5-100	2-1/2"	2.87"	100'	35	29	5"	0.75 lbs
SPVC-FDW-3.0-100	3"	3.50"	100'	35	29	6"	1.07 lbs
SPVC-FDW-4.0-100	4"	4.63"	100'	30	29	8"	1.52 lbs
SPVC-FDW-5.0-100	5"	5.63"	100'	30	25	10"	2.39 lbs
SPVC-FDW-6.0-20	6"	6.73"	100'	30	25	12"	3.12 lbs
SPVC-FDW-6.0-100	6"	6.73"	100'	30	25	12"	3.12 lbs
