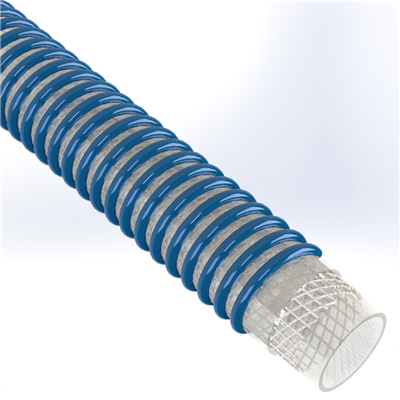

SPVC-MHH-5.0-100 by Texcel | SIGMA-POLY MHH™ Series | Polyurethane Food-Grade Suction & Discharge Hose | 5" Hose ID | 70 PSI | 28 in/Hg Vacuum Rated | Blue

$69.09 - $5,757.22

$69.09

$49.35

$49.35 - $4,112.30

$49.35

SIGMA by Texcel
POLY MHH™ Series | Polyurethane Food-Grade Suction & Discharge Hose

Quantity

Specifications for Variant SKU: SPVC-MHH-5.0-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-POLY MHH™ Series
Hose Color(s):	Blue
Internal Diameter:	5in
Outer Diameter:	5.80in
Tubing Construction:	Polyurethane
Cover Construction:	Vinyl
Special Properties:	Outer Helix Protection

Technical Data:
Description:	Heavy-duty construction that complies with all applicable FDA requirements. Clear polyurethane and blue PVC helix construction allows for visual confirmation of material flow. Smooth bore construction eliminates material build up. Yarn reinforced for discharge applications. Heavy corrugation provides extra flexibility. Embedded wire prevents static electricity build up.	Construction:	Clear, flexible polyurethane with a blue, tough vinyl right-handed helix; synthetic yarn reinforcement, embedded copper wire for grounding; static wire
Safety Factor:	3:1	Temperature:	-40°F to +150°F
Branding:	TEXCEL® SIGMA-PVC MHH™ - POLYURETHANE FOOD GRADE SUCTION / DISCHARGE HOSE --LOT	Safety Note:	Grounding wire must be properly terminated at both ends in order to dissipate static electricity. It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features:	FDA and USDA compliant, Phthalate Free

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
SPVC-MHH-3.0-100	3"	3.78"	100	29	10"	1.18
SPVC-MHH-4.0-100	4"	4.85"	75	29	12"	1.58
SPVC-MHH-5.0-100	5"	5.80"	70	28	14"	2.47
SPVC-MHH-6.0-100	6"	6.93"	70	28	14"	2.86
