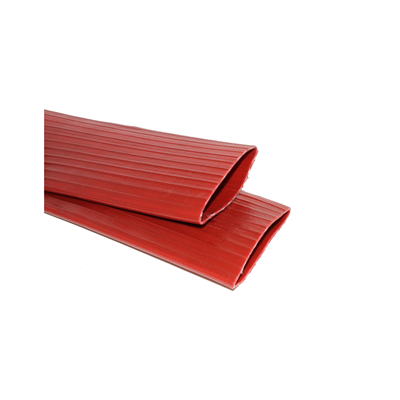

SPVC-RH-4.0-300 by Texcel | SIGMA-RH DISCHARGE™ Series | Heavy-Duty Lay-Flat Discharge Hose | 4" Hose ID | 130 PSI | Red | 300ft Length

Save $262.06

$917.21

$917.21 - $917.21

$917.21

$655.15

$655.15 - $655.15

$655.15

SIGMA-RH by Texcel
DISCHARGE™ Series | Heavy-Duty Red PVC Lay-Flat Discharge Hose

Package Quantity: 300 Units

Specifications for Variant SKU: SPVC-RH-4.0-300- Texcel \| 300 \|
Brand:	SIGMA
Series:	SIGMA-RH DISCHARGE™ Series
Hose Color(s):	Red
Internal Diameter:	4in
Tubing Construction:	PVC

Technical Data:
Description:	A heavy-duty PVC lay-flat hose designed for higher pressure applications. The exclusive “through the weave” process ensures the highest quality and durability. An ideal hose for pump discharge, tank cleaning, dewatering, irrigation and wash down applications.	Tube and Cover:	Red, homogeneous virgin PVC
Reinforcement:	High tensile polyester yarn	Temperature:	-40 F to +150F
Safety Factor:	3:1	Branding:	TEXCEL® SIGMA-RH DISCHARGE™ - HEAVY DUTY WATER DISCHARGE HOSE -LOT
Safety Note:	Service temperature depends on actual application

Part Number	Hose ID	Std. Length	Working Pressure (psi)	Lbs./ft
SPVC-RH-1.5-300	1-1/2"	300'	150 psi	0.20 lbs
SPVC-RH-2.0-300	2"	300'	150 psi	0.28 lbs
SPVC-RH-3.0-300	3"	300'	150 psi	0.57 lbs
SPVC-RH-4.0-300	4"	300'	130 psi	0.67 lbs
SPVC-RH-6.0-300	6"	300'	120 psi	1.34 lbs
SPVC-RH-8.0-300	8"	300'	90 psi	1.88 lbs
