SPVC-URE-B-5.0-100 by Texcel | SIGMA-URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover | 5" Hose ID | 30 PSI | 28 in/Hg Vacuum Rated | Black | 100ft Length

Save $1,083.75

$3,793.12

$3,793.12 - $3,793.12

$3,793.12

$2,709.37

$2,709.37 - $2,709.37

$2,709.37

SIGMA by Texcel

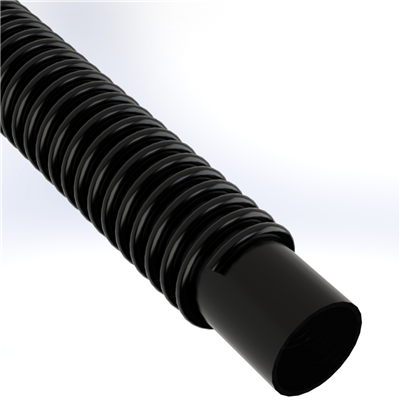

URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-URE-B-5.0-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-URE-B™ Series
Hose Color(s):	Black
Internal Diameter:	5in
Outer Diameter:	5.71in
Tubing Construction:	PVC
Cover Construction:	Polyurethane

Technical Data:
Description:	Abrasion-resistant, polyurethane tube for material handling in dry applications, such as sandblast recovery lines, roof rock cleaning and other abrasive applications. Made of static-dissipating material that remains flexible at low temperatures for ease of handling.	Construction:	Black, flexible PVC and smooth with black, rigid, right-handed helix and smooth, polyurethane liner
Safety Factor:	3:1	Temperature:	-40°F to +150°F
Compared To:	UBK	Safety Note:	Service temperature depends on actual application

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft
SPVC-URE-B-2.0-100	2"	2.40"	100'	40	29	2"	0.51 lbs
SPVC-URE-B-2.5-100	2-1/2"	3.10"	100'	40	29	4"	0.77 lbs
SPVC-URE-B-3.0-100	3"	3.55"	100'	40	29	4"	0.87 lbs
SPVC-URE-B-4.0-100	4"	4.68"	100'	35	29	6"	1.55 lbs
SPVC-URE-B-5.0-100	5"	5.71"	100'	30	28	10"	2.30 lbs
SPVC-URE-B-6.0-20	6"	7.05"	20'	30	28	12"	3.40 lbs
SPVC-URE-B-6.0-100	6"	7.05"	100'	30	28	12"	3.40 lbs
SPVC-URE-B-8.0-20	8"	9.05"	20'	30	28	15"	4.88 lbs
