SPW-32 by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diamter: 2" | Plated Steel
SPW-32 by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diamter: 2" | Plated Steel

SPW-32 by Foster | Loop Clamp w/ EPDM Cushion | Clamp Diamter: 2" | Plated Steel

Save $1.82 Save $1.82
$4.55
$4.55 - $4.55
$4.55
$2.73
$2.73 - $2.73
$2.73

Foster

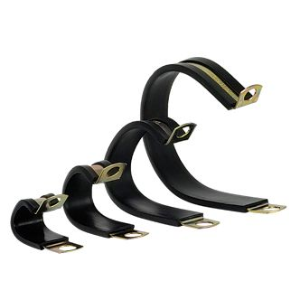

SPW Loop Clamps | Plated Steel 3/4" (19mm) Wide
Specifications for Variant SKU: SPW-32 Zsi-Foster
Series: SPW Series
Material(s): Plated Steel, EPDM
Clamp Width: .75
Maximum Clamp I.D.: 2
Features:
  • Light to medium duty steel clamp
  • E.P.D.M. cushion for electrical insulation and vibration absorption
  • Steel clamps are zinc electroplated for corrosion resistance
  • Color - Silver with black durable cushion.
  • Temperature range -50°F to +275°F (-45°C to 135°C)

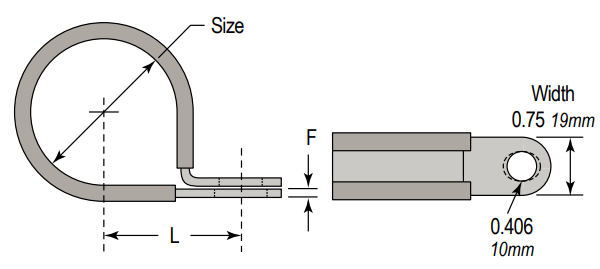

Plated Steel Part Number Clamp ID L F
SPW-04 1/4" 0.639" 0.031"
SPW-06 5/16" 0.681" 0.031"
SPW-07 7/16" 0.702" 0.031"
SPW-08 1/2" 0..764" 0.031"
SPW-09 9/16" 0.795" 0.031"
SPW-10 5/8" 0.827" 0.031"
SPW-12 3/4" 0.889" 0.031"
SPW-14 7/8" 0.952" 0.031"
SPW-16 1" 1.014" 0.031"
SPW-18 1-1/8" 1.090" 0.031"
SPW-20 1-1/4" 1.159" 0.050"
SPW-24 1-1/2" 1.284" 0.050"
SPW-26 1-5/8" 1.346" 0.050"
SPW-28 1-3/4" 1.409" 0.050"
SPW-30 1-7/8" 1.471" 0.050"
SPW-32 2" 1.534" 0.050"
SPW-36 2-1/4" 1.659" 0.050"
SPW-40 2-1/2" 1.784" 0.050"
SPW-48 3" 2.034" 0.050"
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
