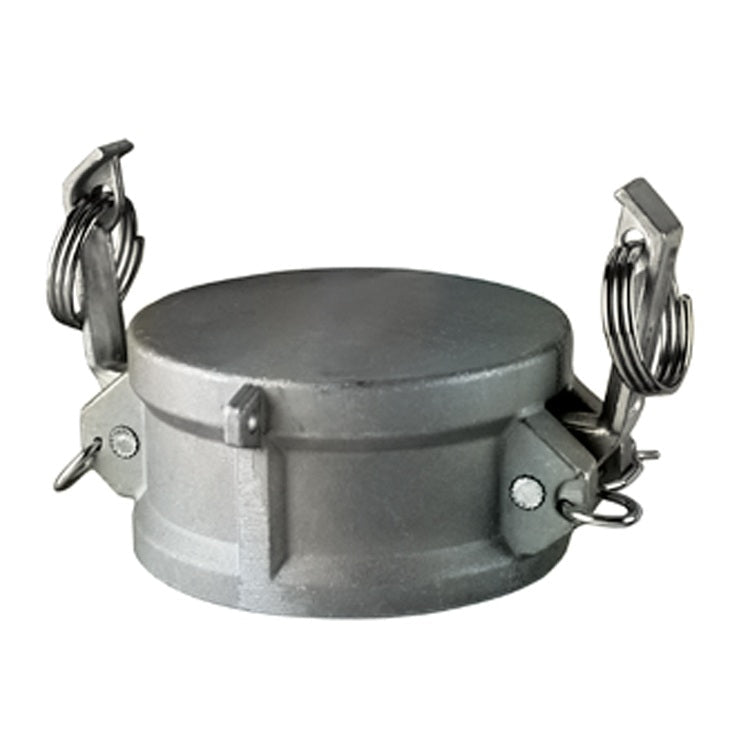

SS-DC100 by Kuriyama | SS-DC Series | Part DC | Cam & Groove Dust Cap | 1" Size | 316 Stainless Steel

SS-DC100 by Kuriyama | SS-DC Series | Part DC | Cam & Groove Dust Cap | 1" Size | 316 Stainless Steel

Save $8.23 Save $8.23
$24.39
$24.39 - $24.39
$24.39
$16.16
$16.16 - $16.16
$16.16

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Cap | SS-DC | Part DC | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS-DC100 Kuriyama
Series: SS-DC Series
Cam Type: Type DC
Ends Configuration: 1in Female Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS-DC050 1/2" 250 PSI A666/316 0.25 lbs
SS-DC075 3/4" 250 PSI A666/316 0.36 lbs
SS-DC100 1" 250 PSI A666/316 0.54 lbs
SS-DC125 1-1/4" 250 PSI A666/316 1.30 lbs
SS-DC150 1-1/2" 250 PSI A666/316 1.46 lbs
SS-DC200 2" 250 PSI A666/316 1.78 lbs
SS-DC250 2-1/2" 150 PSI A666/316 2.38 lbs
SS-DC300 3" 150 PSI A666/316 3.04 lbs
SS-DC400 4" 150 PSI A666/316 5.02 lbs
SS-DC500 5" 75 PSI A666/316 7.35 lbs
SS-DC600 6" 75 PSI A666/316 9.92 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
