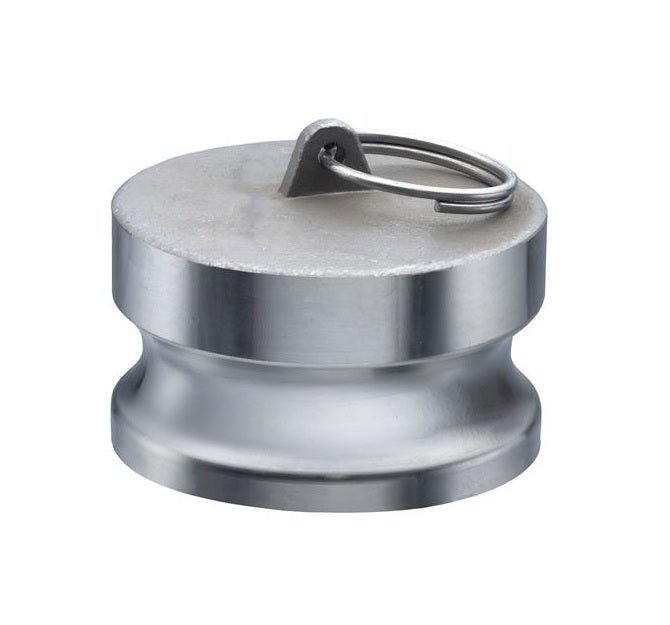

SS-DP150 by Kuriyama | SS-DP Series | Part DP | Cam & Groove Plug | 1-1/2" Size | 316 Stainless Steel

SS-DP150 by Kuriyama | SS-DP Series | Part DP | Cam & Groove Plug | 1-1/2" Size | 316 Stainless Steel

Save $8.99 Save $8.99
$27.59
$27.59 - $27.59
$27.59
$18.60
$18.60 - $18.60
$18.60

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Plug | SS-DP | Part DP | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS-DP150 Kuriyama
Series: SS-DP Series
Cam Type: Type DP
Ends Configuration: 1-1/2in Male Cam & Groove
Material(s): 316 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS-DP050 1/2" 250 PSI A666/316 0.15 lbs
SS-DP075 3/4" 250 PSI A666/316 0.20 lbs
SS-DP100 1" 250 PSI A666/316 0.28 lbs
SS-DP125 1-1/4" 250 PSI A666/316 0.60 lbs
SS-DP150 1-1/2" 250 PSI A666/316 0.72 lbs
SS-DP200 2" 250 PSI A666/316 0.96 lbs
SS-DP250 2-1/2" 150 PSI A666/316 1.47 lbs
SS-DP300 3" 150 PSI A666/316 1.94 lbs
SS-DP400 4" 150 PSI A666/316 3.36 lbs
SS-DP500 5" 75 PSI A666/316 6.24 lbs
SS-DP600 6" 75 PSI A666/316 9.08 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
