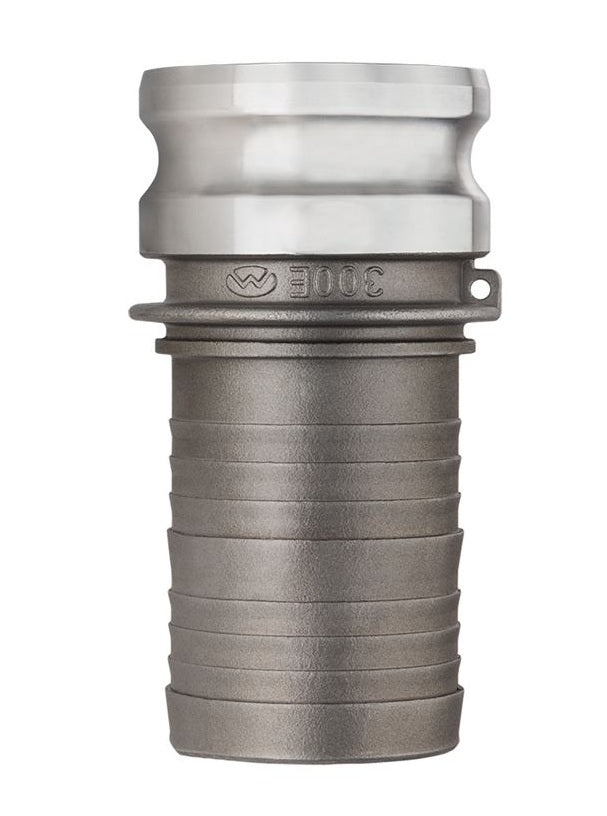

SS-E250 by Kuriyama | SS-E Series | Part E | Cam & Groove Fitting | 2-1/2" Adapter x 2-1/2" Hose Barb | 316 Stainless Steel

SS-E250 by Kuriyama | SS-E Series | Part E | Cam & Groove Fitting | 2-1/2" Adapter x 2-1/2" Hose Barb | 316 Stainless Steel

Save $15.66 Save $15.66
$75.98
$75.98 - $75.98
$75.98
$60.32
$60.32 - $60.32
$60.32

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | SS-E | Part E | Adapter x Hose Barb | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS-E250 Kuriyama
Series: SS-E Series
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 2-1/2in Male Cam & Groove, 2-1/2in Hose Barb
Material(s): 316 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Tri-Couple™ design available in 1 1/2", 2", 3", 4" sizes.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Coupler Size
(in)		 Shank Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS-E050 1/2" 1/2" 250 PSI A666/316 0.25 lbs
SS-E075 3/4" 3/4" 250 PSI A666/316 0.36 lbs
SS-E100 1" 1" 250 PSI A666/316 0.60 lbs
SS-E125 1-1/4" 1-1/4" 250 PSI A666/316 0.95 lbs
SS-E150* 1-1/2" 1-1/2" 250 PSI A666/316 1.22 lbs
SS-E200* 2" 2" 250 PSI A666/316 1.98 lbs
SS-E250 2-1/2" 2-1/2" 150 PSI A666/316 2.64 lbs
SS-E300* 3" 3" 150 PSI A666/316 3.90 lbs
SS-E3020 3" 2" 150 PSI A666/316 3.15 lbs
SS-E400* 4" 4" 150 PSI A666/316 6.38 lbs
SS-E500 5" 5" 75 PSI A666/316 9.10 lbs
SS-E600 6" 6" 75 PSI A666/316 13.49 lbs

* Designates Tri-Couple fitting.
