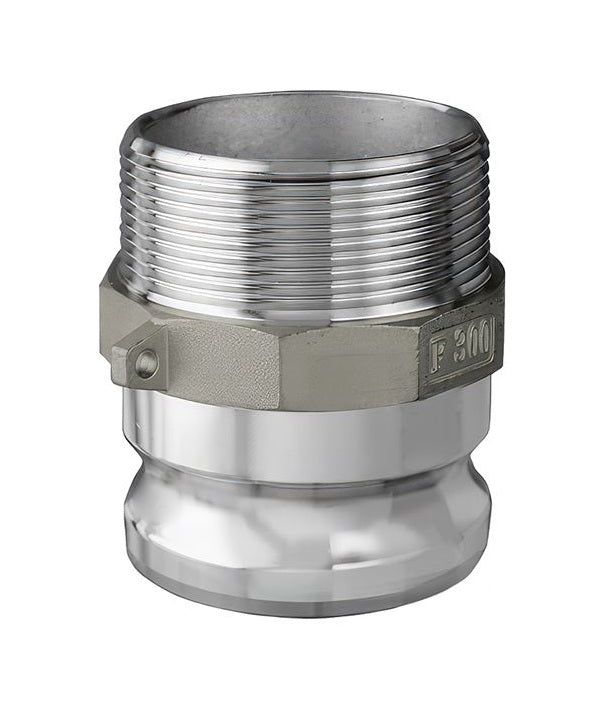

SS-F300 by Kuriyama | SS-F Series | Part F | Cam & Groove Adapter | 3" Adapter x 3" Male NPT | 316 Stainless Steel

SS-F300 by Kuriyama | SS-F Series | Part F | Cam & Groove Adapter | 3" Adapter x 3" Male NPT | 316 Stainless Steel

Save $20.74 Save $20.74
$115.74
$115.74 - $115.74
$115.74
$95.00
$95.00 - $95.00
$95.00

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SS-F | Part F | Adapter x Male NPT | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS-F300 Kuriyama
Series: SS-F Series
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 3in Male NPT
Material(s): 316 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS-F050 1/2" 250 PSI A666/316 0.30 lbs
SS-F075 3/4" 250 PSI A666/316 0.40 lbs
SS-F100 1" 250 PSI A666/316 0.56 lbs
SS-F125 1-1/4" 250 PSI A666/316 1.06 lbs
SS-F150 1-1/2" 250 PSI A666/316 1.28 lbs
SS-F200 2" 250 PSI A666/316 1.82 lbs
SS-F250 2-1/2" 150 PSI A666/316 2.68 lbs
SS-F300 3" 150 PSI A666/316 3.92 lbs
SS-F400 4" 150 PSI A666/316 6.32 lbs
SS-F500 5" 75 PSI A666/316 8.26 lbs
SS-F600 6" 75 PSI A666/316 11.27 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
