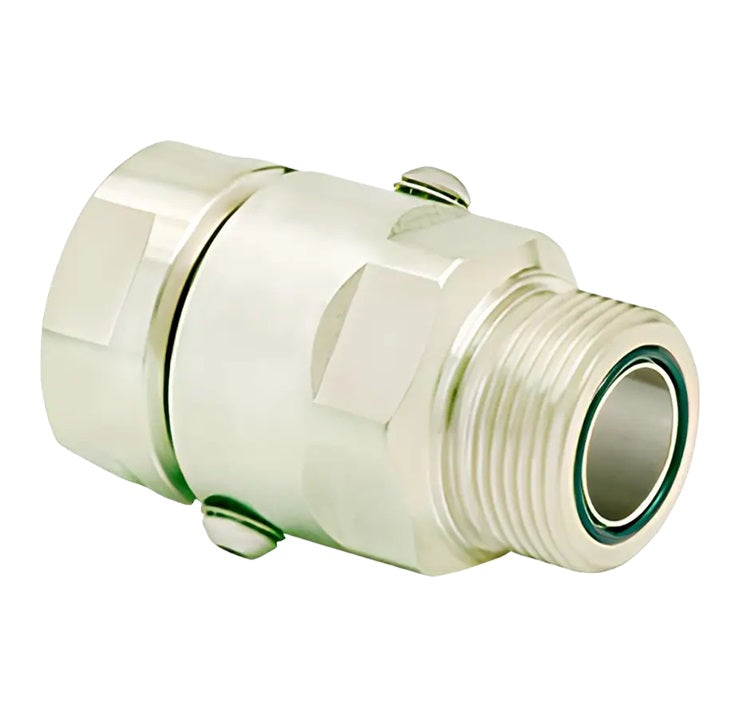

SS16DBFFS16XMFS16-Z-90V by Super Swivel | 16062-Z-90V | Super Duty Swivel | 1-7/16-12 Female Face Seal FFS x 1-7/16-12 Male Face Seal MFS | Straight | Zinc | Viton Seal

SS16DBFFS16XMFS16-Z-90V by Super Swivel | 16062-Z-90V | Super Duty Swivel | 1-7/16-12 Female Face Seal FFS x 1-7/16-12 Male Face Seal MFS | Straight | Zinc | Viton Seal

Save $5.32 Save $5.32
$115.59
$115.59 - $115.59
$115.59
$110.27
$110.27 - $110.27
$110.27

Super Swivels
Super-Duty-Swivels - Straight - Female Face Seal FFS X Male Face Seal MFS
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SS16DBFFS16XMFS16-Z-90V Super Swivels #16062
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 1in Male O-Ring Face Seal
Material(s): Zink-Plated Carbon Steel
Seal Material(s): Viton/FKM
Features:
  • For heavy-duty applications Super-Duty-Swivels™ offer a multiple bearing race design for superior side load strength and added load bearing support.
  • The inner and outer race for the ball bearings is integrally designed and machined within tight tolerances into the hardened metal of the male stem and female body, providing a rigid track for the balls to roll freely, yet securely.
  • Super-Duty-Swivels superior design, construction and seals allow for higher maximum pressure ratings than others, even in 90° configuration.
  • Sizes range from 1/4" through 1-1/2" body thread with multiple fittings and seal configurations including Inline and 90° Swivels.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)

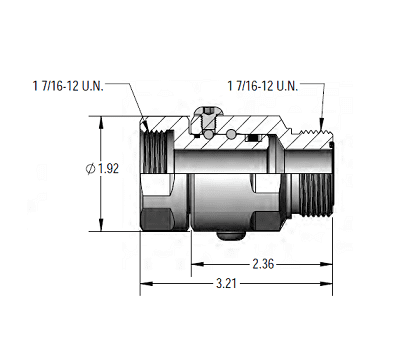

Part Number Material Seal Female
Face Seal FFS		 Male
Face Seal MFS		 Overall
Length		 Diameter Max
Pressure
SS16DBFFS16XMFS16-Z-90V Zinc Viton 1-7/16-12 UN 1-7/16-12 UN 3.21" 1.92" 4500 PSI
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
