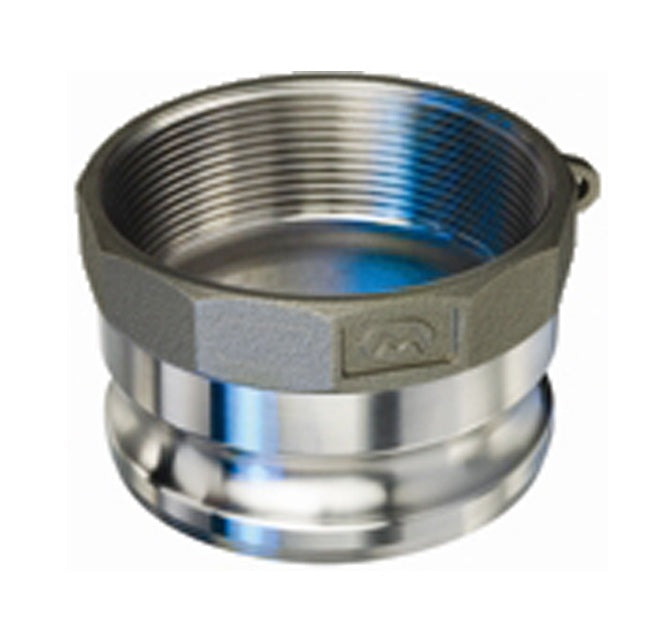

SS304-A050 by Kuriyama | SS304-A Series | Part A | Cam & Groove Adapter | 1/2" Adapter x 1/2" Female NPT | 304 Stainless Steel

SS304-A050 by Kuriyama | SS304-A Series | Part A | Cam & Groove Adapter | 1/2" Adapter x 1/2" Female NPT | 304 Stainless Steel

Save $5.83 Save $5.83
$13.00
$13.00 - $13.00
$13.00
$7.17
$7.17 - $7.17
$7.17

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SS304-A Series | Part A | Adapter x Female NPT | 304 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS304-A050 Kuriyama
Series: SS304-A Series
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 1/2in Male Cam & Groove, 1/2in Female NPT
Material(s): 304 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS304-A050 1/2" 250 PSI A666/304 0.20 lbs
SS304-A075 3/4" 250 PSI A666/304 0.26 lbs
SS304-A100 1" 250 PSI A666/304 0.34 lbs
SS304-A125 1-1/4" 250 PSI A666/304 0.62 lbs
SS304-A150 1-1/2" 250 PSI A666/304 0.80 lbs
SS304-A200 2" 250 PSI A666/304 1.12 lbs
SS304-A250 2-1/2" 150 PSI A666/304 1.76 lbs
SS304-A300 3" 150 PSI A666/304 2.16 lbs
SS304-A400 4" 150 PSI A666/304 2.88 lbs
SS304-A500 5" 75 PSI A666/304 4.30 lbs
SS304-A600 6" 75 PSI A666/304 6.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
