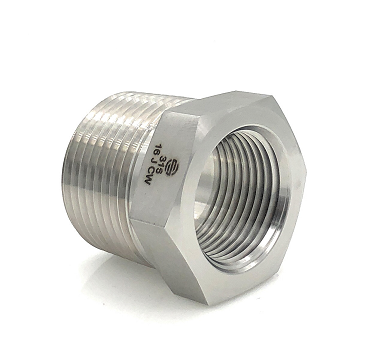

SS5406-06-04 Midland 3/8" Male NPT x 1/4" Female NPT - Bushing/Reducer - 316 Stainless Steel

SS5406-06-04 by Midland | 3/8" Male NPT x 1/4" Female NPT | Bushing/Reducer | 316 Stainless Steel

Save $4.00 Save $4.00
$10.00
$10.00 - $10.00
$10.00
$6.00
$6.00 - $6.00
$6.00

Midland Industries
Stainless Adapter: Male NPT x Female NPT - Bushing/Reducer - 316 Stainless Steel

Inventory @ Manufacturers Warehouse: 282 Units
Specifications for Variant SKU: SS5406-06-04 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 1/4in Female NPT
Material(s): 316 Stainless Steel
Applicable Specs & Approvals: SAE J514, SAE J518, SAE J1453, SAE J1926/ISO 11926
Technical Info:
Crossover Series:
SAI: 5606-X-X SWAGELOK: SS-XRB-X SSP: XXXRA PARKER: XXXPTR-SS AEROQUIP: 259-2081-X-X
Part Number MNPT Size FNPT Size MNPT Thread FNPT Thread Length
SS5406-04-02
 1/4" 1/8" 1/4-18 1/8-27 0.850"
SS5406-06-04
 3/8" 1/4" 3/8-18 1/4-18 0.850"
SS5406-08-04
 1/2" 1/4" 1/2-14 1/4-18 1.098"
SS5406-08-06
 1/2" 3/8" 1/2-14 3/8-18 1.098"
SS5406-12-04
 3/4" 1/4" 3/4-14 1/4-18 1.169"
SS5406-12-06
 3/4" 3/8" 3/4-14 3/8-18 1.169"
SS5406-12-08
 3/4" 1/2" 3/4-14 1/2-14 1.169"
SS5406-16-04
 1" 1/4" 1-11-1/2 1/4-18 0.940"
SS5406-16-06
 1" 3/8" 1-11-1/2 3/8-18 0.940"
SS5406-16-08
 1" 1/2" 1-11-1/2 1/2-14 0.940"
SS5406-16-12
 1" 3/4" 1-11-1/2 3/4-14 0.940"
SS5406-20-12
 1-1/4" 3/4" 1-1/4-11-1/2 3/4-14 1.47"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
