SSGC26-6x6 Couplamatic Grip Crimp Coupling - 316 Stainless Steel - JIC 37° - 90° Female Swivel - 3/8" Hose ID - 9/16x18 Thread Size

SSGC26-6x6 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 9/16x18 Thread Size JIC 37° Female Swivel | 90° Elbow | 316 Stainless Steel

Save $47.55 Save $47.55
$118.88
$118.88 - $118.88
$118.88
$71.33
$71.33 - $71.33
$71.33

Couplamatic Systems Inc.
Grip Crimp Series - 316 Stainless Steel- JIC 37° - 90° Female Swivel
Specifications for Variant SKU: SSGC26-6x6 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

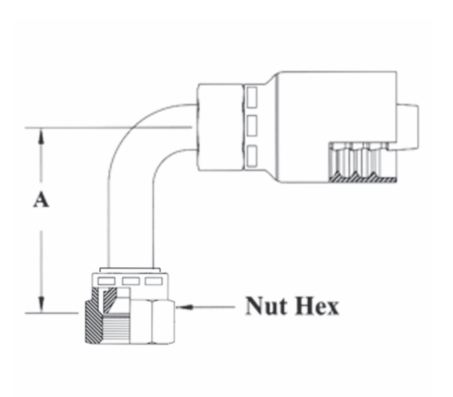

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
SSGC26-4x4 1/4" 7/16x20 1/4" 1.05" 9/16"
SSGC26-6x6 3/8" 9/16x18 3/8" 1.15" 11/16"
SSGC26-8x8 1/2" 3/4x16 1/2" 1.40" 7/8"
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
