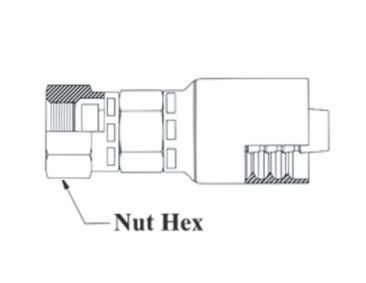

SSGC75-16x16 Couplamatic Grip Crimp Coupling - 316 Stainless Steel - O-Ring Face Seal (ORF) - Female Swivel Short Rise - 1" Hose ID - 1-7/16x12 Thread Size

SSGC75-16x16 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x 1-7/16x12 Thread Size O-Ring Face Seal | ORF Female Swivel Short Rise | Straight | 316 Stainless Steel

Save $64.07 Save $64.07
$160.18
$160.18 - $160.18
$160.18
$96.11
$96.11 - $96.11
$96.11

Couplamatic Systems Inc.
Grip Crimp Series - 316 Stainless Steel - O-Ring Face Seal (ORF) - Female Swivel Short Rise
Specifications for Variant SKU: SSGC75-16x16 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Tube OD Nut Hex
SSGC75-4x4 1/4" 9/16x18 1/4" 11/16"
SSGC75-6x6 3/8" 11/16x16 3/8" 13/16"
SSGC75-8x8 1/2" 13/16x16 1/2" 15/16"
SSGC75-12x12 3/4" 1-3/16x12 3/4" 1-3/8"
SSGC75-16x16 1" 1-7/16x12 1" 1-5/8"
