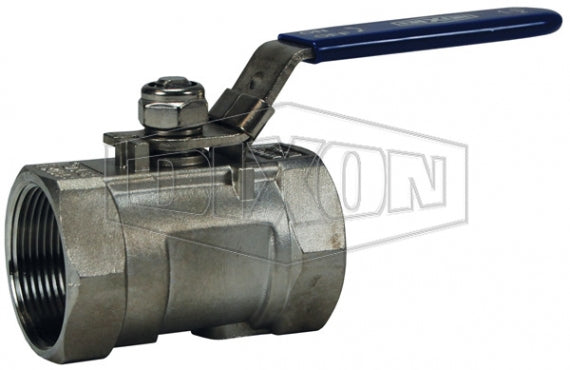

SSLBV25SP by Dixon Valve | Ball Valve with Locking Handle | Reduced Port | 1/4" Female NPT x 1/4" Female NPT | 316 Stainless Steel

SSLBV25SP by Dixon Valve | Ball Valve with Locking Handle | Reduced Port | 1/4" Female NPT x 1/4" Female NPT | 316 Stainless Steel

Save $8.88 Save $8.88
$27.36
$27.36 - $27.36
$27.36
$18.48
$18.48 - $18.48
$18.48

Dixon Valve & Coupling
Ball Valve with Locking Handle | Reduced Port | 316 Stainless Steel

For use with water, oil, and gas.
Specifications for Variant SKU: SSLBV25SP Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Features:
  • Lockable.
  • Blow-out proof stem design.
  • Not recommended as a throttling valve.
Materials:
  • Body: 316 Stainless Steel.
  • 316 stainless steel ball and stem.
  • RPTFE seat, joint gasket and thrust washer.
  • Plastic cover on handle.
Specifications:
  • Temperature range: -20°F to 356°F (-29°C to 180°C)
  • Pressure rating: 1000 PSI WOG; 100 PSI saturated steam
Part Number Female NPT x Female NPT Port
SSLBV25SP 1/4" Reduced
SSLBV38SP 3/8" Reduced
SSLBV50SP 1/2" Reduced
SSLBV75SP 3/4" Reduced
SSLBV100SP 1" Reduced
SSLBV125SP 1-1/4" Reduced
SSLBV150SP 1-1/2" Reduced
SSLBV200SP 2" Reduced
