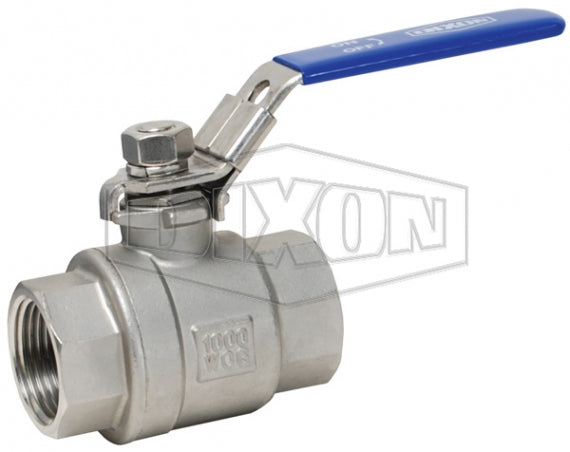

SSLBV300 by Dixon Valve | Ball Valve with Locking Handle | Full Port | 3" Female NPT x 3" Female NPT | 316 Stainless Steel

SSLBV300 by Dixon Valve | Ball Valve with Locking Handle | Full Port | 3" Female NPT x 3" Female NPT | 316 Stainless Steel

Save $338.32 Save $338.32
$845.80
$845.80 - $845.80
$845.80
$507.48
$507.48 - $507.48
$507.48

Dixon Valve & Coupling
Ball Valve with Locking Handle | Full Port | 316 Stainless Steel

For use with water, oil, and gas.
Specifications for Variant SKU: SSLBV300 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Features:
  • Lockable.
  • Blow-out proof stem design.
  • Not recommended as a throttling valve.
Materials:
  • Body: 316 Stainless Steel.
  • 316 stainless steel ball and stem.
  • RPTFE seat, joint gasket and thrust washer.
  • Plastic cover on handle.
Specifications:
  • Temperature range: -20°F to 356°F (-29°C to 180°C)
  • Pressure rating:
    1/4" - 2" rated to 1000 PSI WOG (CWP)
    2-1/2" - 3" rated to 800 PSI WOG (CWP)
    100 PSI saturated steam
Part Number Female NPT x Female NPT Port
SSLBV25 1/4" Full
SSLBV38 3/8" Full
SSLBV50 1/2" Full
SSLBV75 3/4" Full
SSLBV100 1" Full
SSLBV125 1-1/4" Full
SSLBV150 1-1/2" Full
SSLBV200 2" Full
SSLBV250 2-1/2" Full
SSLBV300 3" Full
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
