SSN-18 by Foster | Loop Clamp | Clamp Diameter: 1-1/8" | Stainless Steel
SSN-18 by Foster | Loop Clamp | Clamp Diameter: 1-1/8" | Stainless Steel

SSN-18 by Foster | Loop Clamp | Clamp Diameter: 1-1/8" | Stainless Steel

Save $1.55 Save $1.55
$3.88
$3.88 - $3.88
$3.88
$2.33
$2.33 - $2.33
$2.33

Foster
SSN Loop Clamps | Stainless Steel 1/2" (13mm) Wide
Specifications for Variant SKU: SSN-18 Zsi-Foster
Series: SSN Series
Material(s): Stainless Steel
Clamp Width: 0.5
Maximum Clamp I.D.: 1.125
Features:

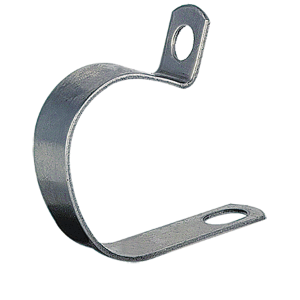

  • Medium duty steel clamp that can be slipped over a tube or wire and closed with a bolt at assembly. Holes provide easy alignment. Its pre-developed shape allows for proper closing and excellent fit.
  • Stainless steel, type 301 or 304

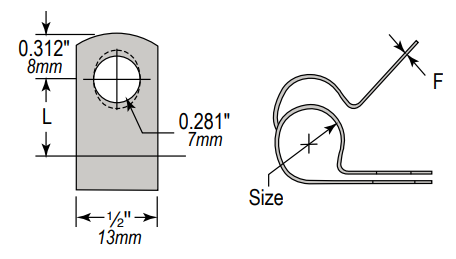

Part Number Clamp ID L F
SSN-03 3/16" 0.500" 0.032"
SSN-04 1/4" 0.531" 0.032"
SSN-05 5/16" 0.562" 0.032"
SSN-06 3/8" 0.593" 0.032"
SSN-08 1/2" 0.656" 0.048"
SSN-09 9/16" 0.687" 0.048"
SSN-10 5/8" 0.718" 0.048"
SSN-12 3/4" 0.843" 0.048"
SSN-14 7/8" 0.843" 0.048"
SSN-16 1" 0.906" 0.048"
SSN-18 1-1/8" 0.968" 0.048"
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
