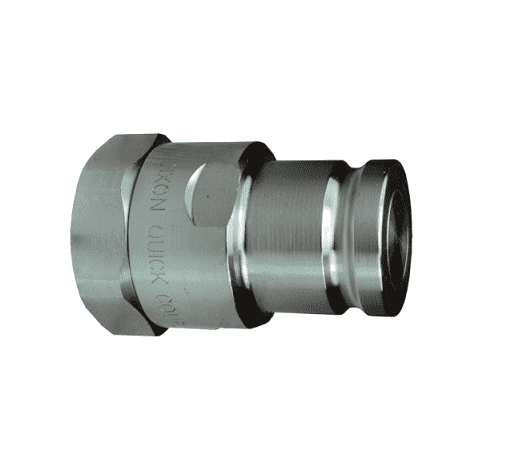

ST3F4-SS Dixon 316 Stainless Steel ST-Series Quick Disconnect 3/8" Snap-Tite 71-Series Interchange Hydraulic Nipple - 1/2"-14 Female NPTF

ST3F4-SS Dixon Valve 316 Stainless Steel ST-Series Quick Disconnect 3/8" Snap-Tite 71-Series Interchange Hydraulic Nipple - 1/2"-14 Female NPTF

Save $8.20 Save $8.20
$73.79
$73.79 - $73.79
$73.79
$65.59
$65.59 - $65.59
$65.59

Dixon Quick Disconnect Couplings - ST-Series Hydraulic Couplings - ST-Series Snap-Tite 71-Series Interchange Nipple (Female Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ST3F4-SS Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Construction:
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel nipples are hardened to provide heavy duty performance.
  • Incorporates PTFE or TPC-ET anti-extrusion rings to protect seal components from dynamic impulse damage.
Compatibility & Interchange Data:
  • Interchangeable with Snap-Tite 71-Series
Seal Components:
  • Nitrile (Buna-N) seals are standard, providing a temperature range of -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • All couplers and nipples incorporate PTFE or TPC-ET anti-extrusion rings to protect the seal components from dynamic impulse damage.
Other Components:
Notes:
  • Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.
Part Number Size Female Threads Material Length Max. OD Hex Max. Operating Pressure Burst Pressure Weight (Lbs.)
ST2F2 1/4" 1/4"-18 NPTF steel 1.84" 0.90" 13/16" 10000 PSI 27300 PSI 0.1600
ST2F2-SS 1/4" 1/4"-18 NPTF 316 stainless 1.84" 0.90" 13/16" 5000 PSI 28000 PSI 0.1600
ST2BF2 1/4" 1/4"-19 BSPP steel 1.84" 0.90" 13/16" 10000 PSI 27300 PSI 0.1600
ST2BF2-SS 1/4" 1/4"-19 BSPP 316 stainless 1.84" 0.90" 13/16" 5000 PSI 28000 PSI 0.1600
ST3F2 3/8" 1/4"-18 NPTF steel 2.32" 1.48" 1" 10000 PSI 27300 PSI 0.2900
ST3F3 3/8" 3/8"-18 NPTF steel 2.32" 1.48" 1" 10000 PSI 27300 PSI 0.2600
ST3F3-SS 3/8" 3/8"-18 NPTF 316 stainless 2.32" 1.48" 1" 5000 PSI 28000 PSI 0.2600
ST3BF3 3/8" 3/8"-19 BSPP steel 2.32" 1.48" 1" 10000 PSI 27300 PSI 0.2600
ST3BF3-SS 3/8" 3/8"-19 BSPP 316 stainless 2.32" 1.48" 1" 5000 PSI 28000 PSI 0.2600
ST3F4 3/8" 1/2"-14 NPTF steel 2.32" 1.48" 1" 10000 PSI 27300 PSI 0.2600
ST3F4-SS 3/8" 1/2"-14 NPTF 316 stainless 2.32" 1.48" 1" 5000 PSI 28000 PSI 0.2600
ST3BF4 3/8" 1/2"-14 BSPP steel 2.32" 1.48" 1" 10000 PSI 27300 PSI 0.2600
ST3BF4-SS 3/8" 1/2"-14 BSPP 316 stainless 2.32" 1.48" 1" 5000 PSI 28000 PSI 0.2600
ST4F4 1/2" 1/2"-14 NPTF steel 2.37" 1.65" 1-1/2" 10000 PSI 22500 PSI 0.4200
ST4F4-SS 1/2" 1/2"-14 NPTF 316 stainless 2.37" 1.65" 1-1/2" 5000 PSI 25000 PSI 0.4200
ST4BF4 1/2" 1/2"-14 BSPP steel 2.37" 1.65" 1-1/2" 10000 PSI 22500 PSI 0.4200
ST4BF4-SS 1/2" 1/2"-14 BSPP 316 stainless 2.37" 1.65" 1-1/2" 5000 PSI 25000 PSI 0.4200
ST4OF4 1/2" 3/4"-16 ORB steel 2.37" 1.65" 1-1/2" 10000 PSI 22500 PSI 0.4200
ST6F6 3/4" 3/4"-14 NPTF steel 2.96" 1.92" 1-3/4" 7500 PSI 20200 PSI 1.0900
ST6F6-SS 3/4" 3/4"-14 NPTF 316 stainless 2.96" 1.92" 1-3/4" 5000 PSI 22800 PSI 1.1400
ST6BF6 3/4" 3/4"-14 BSPP steel 2.96" 1.92" 1-3/4" 7500 PSI 20200 PSI 1.0900
ST6BF6-SS 3/4" 3/4"-14 BSPP 316 stainless 2.96" 1.92" 1-3/4" 5000 PSI 22800 PSI 1.1400
ST6OF6 3/4" 1-1/16"-12 ORB steel 2.96" 1.92" 1-3/4" 7500 PSI 20200 PSI 1.0100
ST8F8 1" 1"-11 1/2 NPTF steel 3.22" 2.10" 1-7/8" 7500 PSI 19400 PSI 1.4800
ST8F8-SS 1" 1"-11 1/2 NPTF 316 stainless 3.22" 2.10" 1-7/8" 4000 PSI 18500 PSI 1.5600
ST8BF8 1" 1"-11 BSPP steel 3.22" 2.10" 1-7/8" 7500 PSI 19400 PSI 1.4800
ST8BF8-SS 1" 1"-11 BSPP 316 stainless 3.22" 2.10" 1-7/8" 4000 PSI 18500 PSI 1.5600
ST8OF8 1" 1-5/16"-12 ORB steel 3.22" 2.10" 1-7/8" 7500 PSI 19400 PSI 1.3700
ST8F10 1" 1-1/4"-11 1/2 NPTF steel 3.48" 2.20" 2" 7500 PSI 19400 PSI 1.6300
ST8F10-SS 1" 1-1/4"-11 1/2 NPTF 316 stainless 3.48" 2.20" 2" 4000 PSI 18500 PSI 1.6900
ST8BF10 1" 1-1/4"-11 BSPP steel 3.48" 2.20" 2" 7500 PSI 19400 PSI 1.6300
ST8BF10-SS 1" 1-1/4"-11 BSPP 316 stainless 3.48" 2.20" 2" 4000 PSI 18500 PSI 1.6900
ST8OF10 1" 1-5/8"-12 ORB steel 3.48" 2.20" 2" 7500 PSI 19400 PSI 1.5400
