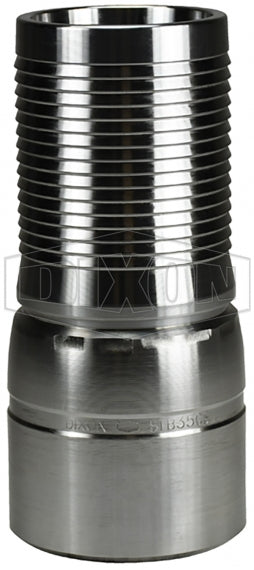

STB25CS by Dixon Valve | King Crimp® | Combination Nipple | Beveled End | 2" Hose ID | Schedule 80 Plated Carbon Steel

Save $14.49

$36.22

$36.22 - $36.22

$36.22

$21.73

$21.73 - $21.73

$21.73

Dixon Valve & Coupling
King Crimp® Style | Combination Nipple | Beveled End

Specifications for Variant SKU: STB25CS Dixon
Brand:	King Crimp®
Shape (Orientation):	Straight
Ends Configuration:	2in Beveled End, 2in Hose Barb
Material(s):	Carbon Steel

About:
There are two grooves on the crimp style King Combination nipples. The second groove is the roll stamp groove which has the part number and 'call Dixon' stamped on it. This groove is a smooth concentric groove so that the stamp can be legible.
Safety Notes:
For use with King Crimp style sleeves and ferrules. Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.

Schedule 80 Plated Carbon Steel Part Number	316 Stainless Steel Part Number	Hose ID
STB10CS	RSTB10CS	1"
STB20CS	RSTB20CS	1-1/2"
STB25CS	RSTB25CS	2"
-	RSTB30CS	2-1/2"
STB35CS	RSTB35CS	3"
STB40CS	RSTB40CS	4"
STB60CS	RSTB60CS	6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
