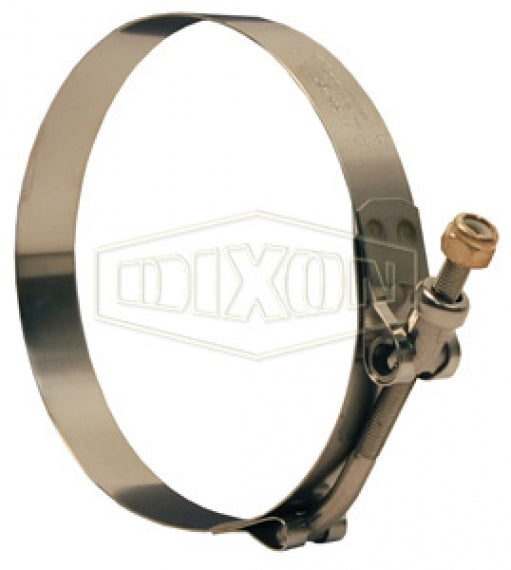

STBC698L by Dixon Valve | Style STBCL | Long Bolt T-Bolt Clamp | 3/4" Band Width | Hose OD Range: from 6.53" to 7.10" | 300 Stainless Steel Band & Bolt

STBC698L by Dixon Valve | Style STBCL | Long Bolt T-Bolt Clamp | 3/4" Band Width | Hose OD Range: from 6.53" to 7.10" | 300 Stainless Steel Band & Bolt

Save $5.31 Save $5.31
$13.27
$13.27 - $13.27
$13.27
$7.96
$7.96 - $7.96
$7.96

Dixon Valve
Long Bolt T-Bolt Clamps | Style STBCL
Specifications for Variant SKU: STBC698L Dixon
Series: Style STBCL
Material(s): 300 Stainless Steel
Special Properties: Long Bolt
Clamp Thickness: 0.025
Clamp Width: 0.75
Minimum Clamp I.D.: 6.53
Maximum Clamp I.D.: 7.1
Features:
  • Can be applied with a standard 7/16" socket wrench.
  • Not for use with pneumatic tools.
Sizes:
  • 3/4" wide, .025" thick
Materials:
  • 300 Series stainless steel band.
  • 300 Series stainless steel bolt, torque rating: 50 in. lbs.
Part Number Band Width Hose OD
From To
STBC325L 3/4" 2.80" 3.37"
STBC350L 3/4" 3.05" 3.62"
STBC382L 3/4" 3.37" 3.94"
STBC400L 3/4" 3.55" 4.12"
STBC420L 3/4" 3.75" 4.32"
STBC432L 3/4" 3.87" 4.44"
STBC450L 3/4" 4.05" 4.62"
STBC482L 3/4" 4.37" 4.94"
STBC500L 3/4" 4.55" 5.12"
STBC532L 3/4" 4.87" 5.44"
STBC550L 3/4" 5.05" 5.62"
STBC582L 3/4" 5.37" 5.94"
STBC600L 3/4" 5.55" 6.12"
STBC632L 3/4" 5.87" 6.44"
STBC650L 3/4" 6.05" 6.62"
STBC675L 3/4" 6.30" 6.87"
STBC698L 3/4" 6.53" 7.10"
STBC700L 3/4" 6.55" 7.12"
STBC707L 3/4" 6.62" 7.19"
STBC850L 3/4" 8.05" 8.62"
STBC875L 3/4" 8.30" 8.87"
STBC888L 3/4" 8.43" 9.00"
STBC907L 3/4" 8.62" 9.19"
STBC1070L 3/4" 10.25" 10.82"
STBC1088L 3/4" 10.43" 11.00"
STBC1107L 3/4" 10.62" 11.19"
STBC1117L 3/4" 10.72" 11.29"
STBC1265L 3/4" 12.20" 12.77"
STBC1288L 3/4" 12.43" 13.00"
STBC1320L 3/4" 12.75" 13.32"
STBC1465L 3/4" 14.20" 14.77"
STBC1488L 3/4" 14.43" 15.00"
STBC1520L 3/4" 14.75" 15.32"
STBC1665L 3/4" 16.20" 16.77"
STBC1688L 3/4" 16.43" 17.00"
