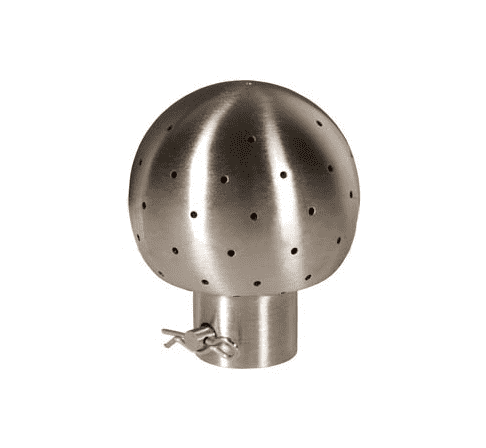

STC-180B-R100 Dixon 1" 316L Stainless Steel Sanitary Stationary Spray Ball - 180 deg. Bottom Spray Pattern

STC-180B-R100 Dixon Valve 1" 316L Stainless Steel Sanitary Stationary Spray Ball - 180 deg. Bottom Spray Pattern

Save $49.86 Save $49.86
$124.65
$124.65 - $124.65
$124.65
$74.79
$74.79 - $74.79
$74.79

Dixon Sanitary Fittings
Sanitary Stationary Spray Ball

Typically used in food and beverage industries for cleaning storage tanks.
Specifications for Variant SKU: STC-180B-R100 Dixon
Features:
  • Heavy stainless steel construction provides longer life.
  • Stationary - designed to be mounted to a tube or pipe.
  • 2 mm spray holes.
316L Stainless Steel
Part Number		 304 Stainless Steel
Part Number		 Size Pin Length Spray Pattern Dimensions Pin Size Weight (Lbs.)
A B C D E
STC-360-R100 - 1" 1.47 360 Deg. 3.04" 2.95" 1.005" .975" .445" .226" 0.3600
STC-360-R150 - 1-1/2" 1.95 360 Deg. 3.54" 2.95" 1.505" .975" .445" .226" 0.5000
316L Stainless Steel
Part Number		 304 Stainless Steel
Part Number		 Size Pin Length Spray Pattern Dimensions Pin Size Weight (Lbs.)
A B C D E
STC-180B-R100 STC-180B-G100 1" 1.47 180 Deg. Bottom 3.54" 2.95" 1.005" .975" .445" .226" N/A
STC-180B-R150 - 1-1/2" 1.95 180 Deg. Bottom 3.54" 2.95" 1.505" .975" .445" .226" N/A
316L Stainless Steel
Part Number		 304 Stainless Steel
Part Number		 Size Pin Length Spray Pattern Dimensions Pin Size Weight (Lbs.)
A B C D E
STC-180T-R100 - 1" 1.47 180 Deg. Top 3.54" 2.95" 1.005" .975" .445" .226" N/A
STC-180T-R150 - 1-1/2" 1.95 180 Deg. Top 3.54" 2.95" 1.505" .975" .445" .226" 0.5100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
