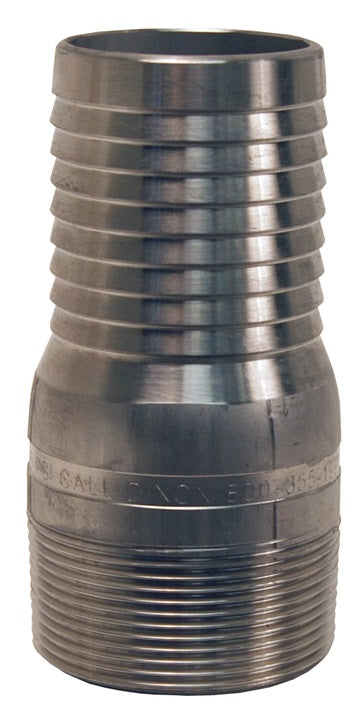

STC35A by Dixon Valve | King Combination Nipple | 3" Male BSPT x 3" Hose ID | Plated Steel

STC35A by Dixon Valve | King Combination Nipple | 3" Male BSPT x 3" Hose ID | Plated Steel

Save $16.19 Save $16.19
$40.47
$40.47 - $40.47
$40.47
$24.28
$24.28 - $24.28
$24.28

Dixon Valve
King Combination Nipple | Male BSPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.
Specifications for Variant SKU: STC35A Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Hose Barb, 3in Hose Barb, Some Ends Match
Material(s): Plated Steel
Safety Notes:
  • King Combination Nipples are not recommended for steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Plated Steel
Part Number		 316 Stainless Steel
Part Number		 Size
STC10A RST10A 1"
STC15A RST15A 1-1/4"
STC20A RST20A 1-1/2"
STC25A RST25A 2"
STC30A RST30A 2-1/2"
STC35A RST35A 3"
STC40A RST40A 4"
STC60A RST60A 6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
