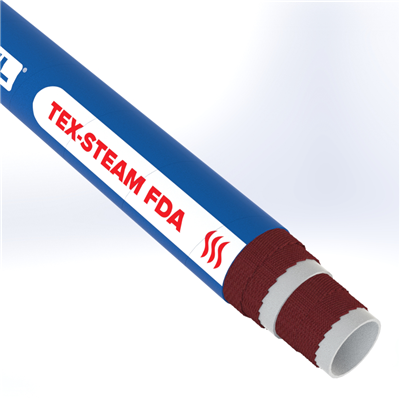

STFD-1.0-100 by Texcel | TEX-STEAM™ FDA Series | Food Grade Steam Hose | 1" Hose ID | 105 PSI | Blue | 100ft Length

Save $243.44

$852.03

$852.03 - $852.03

$852.03

$608.59

$608.59 - $608.59

$608.59

Texcel
TEX-STEAM™ FDA Series | Food Grade Steam Hose

Package Quantity: 100 Units

Specifications for Variant SKU: STFD-1.0-100 Texcel \| 100 \|
Series:	TEX-STEAM™ FDA Series
Hose Color(s):	Blue
Internal Diameter:	1in
Outer Diameter:	1.45in
Tubing Construction:	EPDM
Cover Construction:	EPDM

Technical Data:
Description:	TEX-STEAM™ FDA is a specially-compounded steam hose. It is suitable for the delivery of potable hot water mixed with steam and detergents. The main use is for washdown and sterilization in the food industry and manufacturing plants. TEX-STEAM™ FDA has a white, smooth, food quality EPDM rubber tube and a blue, smooth, cloth-impression EPDM rubber cover for abrasion-, ozone-, and weather-resistance. Meets FDA title 21, part.177.2600 for aqueous foods.	Tube:	White, EPDM
Cover:	Blue, EPDM	Reinforcement:	High strength synthetic plies
Safety Factor:	10:1	Temperature:	-40°F to 338°F
Branding:	TEXCEL® TEX-STEAM™ FDA STEAM HOSE 105 PSI (7 BAR) W.P TEMP. -40F TO 338F (-40C to 170C) 10:1 SAFETY FACTOR	Safety Note:	Drain the hose after each use for maximum hose life Do not alternate use between steam and water Texcel recommends using Dixon Valve and Coupling’s Boss™ Stainless Steel Ground Joint and 4-Bolt System for Tex-STEAM™ FDA. Please consult Dixon for proper coupling procedures. It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features:	FDA and USDA compliant

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Lbs./Ft.
STFD-.5-100	1/2"	60/64"	100'	105	0.25
STFD-.75-100	3/4"	1-14/64"	100'	105	0.39
STFD-1.0-100	1"	1-29/64"	100'	105	0.50
