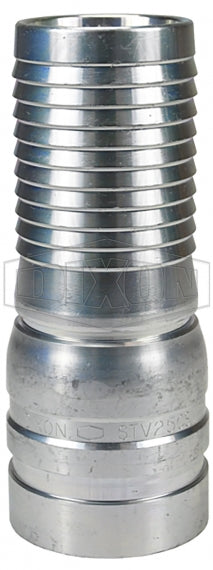

STV35CS by Dixon Valve | King Crimp® | Combination Nipple | Grooved End | 3" Hose ID | Schedule 80 Plated Carbon Steel

STV35CS by Dixon Valve | King Crimp® | Combination Nipple | Grooved End | 3" Hose ID | Schedule 80 Plated Carbon Steel

Save $5.43 Save $5.43
$64.16
$64.16 - $64.16
$64.16
$58.73
$58.73 - $58.73
$58.73

Dixon Valve & Coupling
King Crimp® Style | Combination Nipple | Grooved End
Specifications for Variant SKU: STV35CS Dixon
Brand: King Crimp®
Shape (Orientation): Straight
Ends Configuration: 3in Grooved End, 3in Hose Barb
Material(s): Carbon Steel
About:
  • There are two grooves on the crimp style King Combination nipples. The second groove is the roll stamp groove which has the part number and 'call Dixon' stamped on it. This groove is a smooth concentric groove so that the stamp can be legible.
Safety Notes:
  • For use with King Crimp style sleeves and ferrules.
  • Only use the crimp style shanks with the crimp style sleeves and ferrules.
  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
Schedule 80
Plated Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Hose ID
STV10CS RSTV10CS 1"
STV20CS RSTV20CS 1-1/2"
STV25CS RSTV25CS 2"
STV30CS RSTV30CS 2-1/2"
STV35CS RSTV35CS 3"
STV40CS RSTV40CS 4"
STV60CS RSTV60CS 6"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
