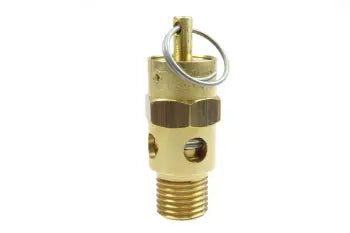

SV070 by Coilhose | ASME-Approved Relief Valve | 70 PSI | 60 SCFM Relief Rate | Brass

SV070 by Coilhose | ASME-Approved Relief Valve | 70 PSI | 60 SCFM Relief Rate | Brass

Save $8.93 Save $8.93
$22.33
$22.33 - $22.33
$22.33
$13.40
$13.40 - $13.40
$13.40
Coilhose Pneumatics - ASME-Approved Relief Valves
Specifications for Variant SKU: SV070 Coilhose
Material(s): Brass
Seal Material(s): Silicone
Overview:
  • These ASME-approved Relief Valves help ensure safe operation of your compressor system by guarding against tank over-pressure. Manufactured to rigid quality control guidelines, these Relief Valves are machined from brass bar stock for a long service life and feature a silicon rubber soft seat to ensure a tight, leak free seal. They also meet both ASME/National Board Approval and Canadian Registration.
Features:
  • Protect compressor tanks by quickly releasing excess pressure.
  • Keep pressure relief at a specified setting (particularly important for applications such as air circuitry).
  • Manual pull ring allows for testing and system pressure relief.
  • Each valve is marked with the relief pressure.
  • ASME/National board approval and Canadian Registration.

Body: All brass Spring: Zinc-Plated Steel
Seal: Silicon Rubber Length: 1-3/4"
Hex: 5/8" Thread: 1/4" NPT
Weight: 0.16 lb.

Model Rating Relief Rate (SCFM)
SV070 70 PSI 60 SCFM
SV100 100 PSI 75 SCFM
SV125 125 PSI 105 SCFM
SV200 200 PSI 160 SCFM
