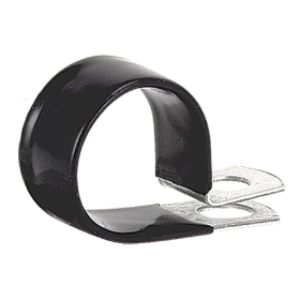

SVN-03 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diamter: 3/16" | Galvanized Steel
SVN-03 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diamter: 3/16" | Galvanized Steel

SVN-03 by Foster | Loop Clamp w/ PVC Black Coating | Clamp Diamter: 3/16" | Galvanized Steel

Save $1.11 Save $1.11
$1.89
$1.89 - $1.89
$1.89
$0.78
$0.78 - $0.78
$0.78

Foster
SVN Loop Clamps | Vinyl Dipped - Galvanized Steel 1/2" (13mm) Wide
Specifications for Variant SKU: SVN-03 Zsi-Foster
Series: SVN Series
Material(s): Galvanized Steel, PVC
Special Properties: Coated
Clamp Width: 0.5
Maximum Clamp I.D.: 0.1875
Features:
  • Medium duty steel clamp that can be slipped over a tube or wire and closed with a bolt at assembly. Holes provide easy alignment. Its pre-developed shape allows for proper closing and excellent fit of the clamp.
  • Galvanized Steel
  • PVC coated, black color
  • Temperature range -25°F to +160°F ( -32°C to +71°C)

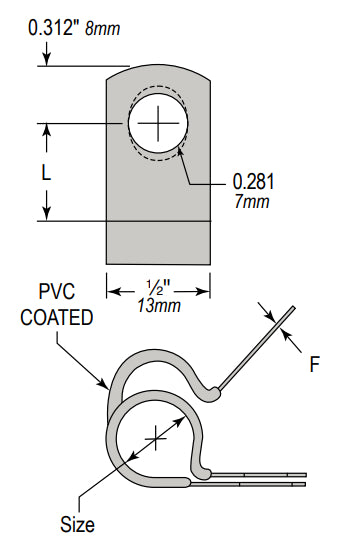

Part Number Clamp ID L F
SVN-03 3/16" 0.500" 0.032"
SVN-04 1/4" 0.531" 0.032"
SVN-05 5/16" 0.562" 0.032"
SVN-06 3/8" 0.593" 0.032"
SVN-08 XX/XX" 0.XXXXX" 0.048"
SVN-09 9/16" 0.687" 0.048"
SVN-10 5/8" 0.718" 0.048"
SVN-12 3/4" 0.781" 0.048"
SVN-14 7/8" 0.843" 0.048"
SVN-16 1" 0.906" 0.048"
SVN-18 1-1/8" 0.968" 0.048"
