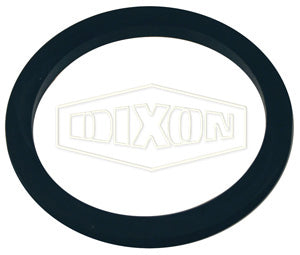

SW500F Dixon Buna-N Fire Hose Coupling Swivel Washer - 5-1/16" ID - 6-3/8" OD

SW500F Dixon Buna-N Fire Hose Coupling Swivel Washer - 5-1/16" ID - 6-3/8" OD

Save $6.63 Save $6.63
$16.58
$16.58 - $16.58
$16.58
$9.95
$9.95 - $9.95
$9.95

Dixon Fire Fittings
Fire Hose Coupling Swivel Washer

Swivel washers are used on the swivel end of expansion ring fire hose couplings.
Specifications for Variant SKU: SW500F Dixon
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Material: Buna-N
Part Number ID OD Thickness Weight
(Lbs.)
SW100F 1-1/16" 1-7/16" 1/8" 0.0045
SW150 1-9/16" 2-1/16" 1/8" 0.0080
SW200 2-1/16" 2-1/2" 1/8" 0.0200
SW250 2-9/16" 3-3/16" 3/16" 0.0230
SW300F 3-1/16" 3-3/4" 1/4" 0.1728
SW400F 4-1/6" 5-1/8" 1/4" 0.0850
SW450F 4-9/16" 5-7/8" 1/4" 0.1000
SW500F 5-1/16" 6-3/8" 1/4" 0.0900
SW600F 6-1/16" 7-1/8" 1/4" 0.1000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
