SW80-100050 by Dixon Valve | Threaded Concentric Reducer Nipple | Schedule 80 | 1" Male NPT x 1/2" Male NPT | 3.5" Length | Zinc Plated

Save $2.26

$20.37

$20.37 - $20.37

$20.37

$18.11

$18.11 - $18.11

$18.11

Dixon Valve
Threaded Concentric Nipple | Male NPT x Male NPT | Schedule 80

Quantity

Specifications for Variant SKU: SW80-100050 Dixon
Series:	SW80 Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPT, 1/2in Male NPT
Material(s):	Zink-Plated Steel

Features:

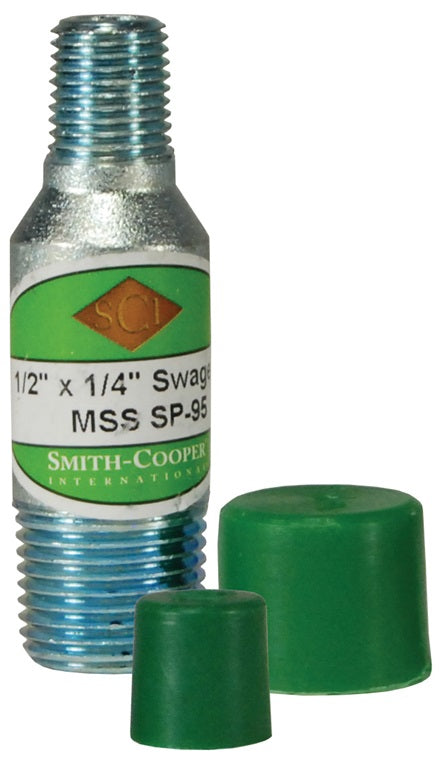

Schedule 80 nipples have green caps.
Approvals:
Manufactured in conformance with ASTM A234 and MSS SP-95 Threads on nipples conform to ASME B1.20.1

Zinc-Plated Part Number	Male NPT	Length
SW80-050025	1/2" x 1/4"	2.8"
SW80-050038	1/2" x 3/8"	2.8"
SW80-075050	3/4" x 1/2"	3.0"
SW80-100025	1" x 1/4"	3.5"
SW80-100050	1" x 1/2"	3.5"
SW80-100075	1" x 3/4"	3.5"
SW80-200050	2" x 1/2"	6.5"
SW80-200075	2" x 3/4"	6.5"
SW80-200100	2" x 1"	6.5"
SW80-200125	2" x 1-1/4"	6.5"
SW80-200150	2" x 1-1/2"	6.5"
SW80-250200	2-1/2" x 2"	7.0"
SW80-300100	3" x 1"	8.0"
SW80-300200	3" x 2"	8.0"
SW80-300250	3" x 2-1/2"	8.0"
SW80-400200	4" x 2"	9.0"
SW80-400300	4" x 3"	9.0"
SW80-400400	4" x 4"	9.0"
SW80-600300	6" x 3"	12.0"
SW80-600400	6" x 4"	12.0"
SW80-800600	8" x 6"	13.0"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
