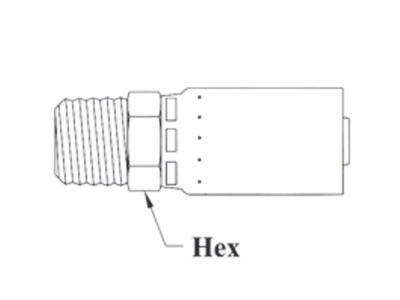

T01-16X16 Couplamatic T Series Coupling - NPTF - Male Solid - 1" Hose ID - 1-11-1/2 Thread Size

T01-16X16 by Couplamatic | T Series Coupling | 1" Hose ID x 1-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 5

Save $6.04 Save $6.04
$54.36
$54.36 - $54.36
$54.36
$48.32
$48.32 - $48.32
$48.32

Couplamatic Systems Inc.
T Series - NPTF - Male Solid

Package Quantity: 5 EA

Specifications for Variant SKU: T01-16X16 Couplamatic | 5 |
Series: T Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead E
T01-3X2 3/16" 1/8" 1/8-27 1/2" 03E-102
T01-3X4 3/16" 1/4" 1/4-18 9/16" -
T01-4X2 1/4" 1/8" 1/8-27 1/2" 04E-102
T01-4X4 1/4" 1/4" 1/4-18 9/16" 04E-104
T01-4X6 1/4" 3/8" 3/8-18 11/16" 04E-106
T01-5X4 5/16" 1/4" 1/4-18 9/16" 05E-104
T01-5X6 5/16" 3/8" 3/8-18 11/16" 05E-106
T01-6X4 3/8" 1/4" 1/4-18 9/16" 06E-104
T01-6X6 3/8" 3/8" 3/8-18 11/16" 06E-106
T01-6X8 3/8" 1/2" 1/2-14 7/8" 06E-108
T01-8X6 1/2" 3/8" 3/8-18 3/4" 08E-106
T01-8X8 1/2" 1/2" 1/2-14 7/8" 08E-108
T01-12X12 3/4" 3/4" 3/4-14 1-1/16" 12E-112
T01-16X16 1" 1" 1-11-1/2 1-3/8" 16E-116
