T09-6X6 Couplamatic T Series Coupling - JIC 37° - Female Swivel - 3/8" Hose ID - 9/16x18 Thread Size

T09-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x 9/16x18 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Save $26.85 Save $26.85
$67.12
$67.12 - $67.12
$67.12
$40.27
$40.27 - $40.27
$40.27

Couplamatic Systems Inc.
T Series - JIC 37° - Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: T09-6X6 Couplamatic | 10 |
Series: T Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

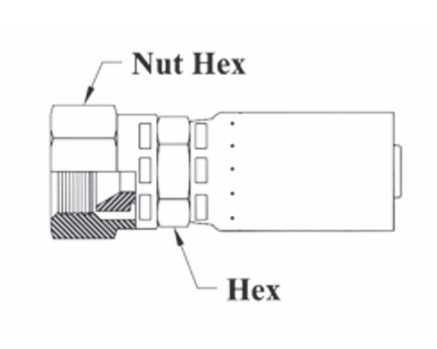

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead E
T09-3X4 3/16" 1/4" 7/16x20 1/2" 9/16" 03E-604
T09-4X4 1/4" 1/4" 7/16x20 1/2" 9/16" 04E-604
T09-4X5 1/4" 5/16" 1/2x20 1/2" 5/8" 04E-605
T09-4X6 1/4" 3/8" 9/16x18 9/16" 11/16" 04E-606
T09-5X5 5/16" 5/16" 1/2x20 1/2" 5/8" 05E-605
T09-5X6 5/16" 3/8" 9/16x18 9/16" 11/16" 05E-606
T09-6X6 3/8" 3/8" 9/16x18 9/16" 11/16" 06E-606
T09-6X8 3/8" 1/2" 3/4x16 3/4" 7/8" 06E-608
T09-8X8 1/2" 1/2" 3/4x16 3/4" 7/8" 08E-608
T09-8X10 1/2" 5/8" 7/8x14 7/8" 1" 08E-610
T09-12X12 3/4" 3/4" 1-1/16x12 1" 1-1/4" 12E-612
T09-16X16 1" 1" 1-5/16x12 1-1/4" 1-1/2" 16E-616

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
