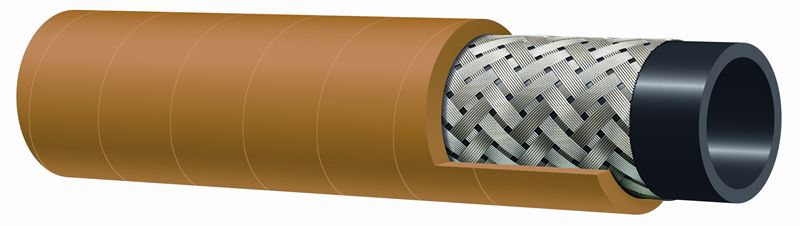

T140AK200X50 Alfagomma by Kuriyama | T140AK Series | Compressed Air Hose | 2" ID | 2.52" OD | 600 PSI | Yellow | 50ft Length

Save $239.72

$652.11

$652.11 - $652.11

$652.11

$412.39

$412.39 - $412.39

$412.39

Kuriyama of America Inc.
Alfagomma | T140AK Series | Compressed Air Hose

For high pressure air hose for heavy-duty use in mines, quarries, construction and industry.

Package Quantity: 50 Foot

Specifications for Variant SKU: T140AK200X50 Kuriyama \| 50 \|
Brand:	Alfagomma
Series:	T140AK Series
Hose Color(s):	Yellow
Internal Diameter:	2in
Outer Diameter:	2.52in
Tubing Construction:	SBR
Cover Construction:	SBR
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Application:	High pressure air hose for heavy-duty use in mines, quarries, construction and industry.	SAE Rating:	-
Other Ratings:	-	Tube:	Black Extruded SBR - resistant to oil mist.
Reinforcement:	High tensile steel wire braids.	Cover:	Yellow SBR - abrasion and ozone resistant - pin pricked.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.
Branding:	ALFAGOMMA - ITALY - T140 STEEL AIR (embossed)

Part Number 50ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Min. Bend Radius at 68°F	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	(in)	lbs/ft
T140AK050X50	T140AK050X100	1/2"	13mm	0.87"	22mm	600 PSI	2-1/2"	0.28 lbs/ft
T140AK075X50	T140AK075X100	3/4"	19mm	1.10"	28mm	600 PSI	4"	0.37 lbs/ft
T140AK100X50	T140AK100X100	1"	25mm	1.34"	34mm	600 PSI	5"	0.47 lbs/ft
T140AK125X50	T140AK125X100	1-1/4"	32mm	1.65"	42mm	600 PSI	6-1/2"	0.72 lbs/ft
T140AK150X50	T140AK150X100	1-1/2"	38mm	1.89"	48mm	600 PSI	7-1/2"	0.86 lbs/ft
T140AK200X50	T140AK200X100	2"	51mm	2.52"	64mm	600 PSI	10"	1.34 lbs/ft
T140AK250X50	T140AK250X100	2-1/2"	63mm	3.03"	77mm	450 PSI	12-1/2"	1.64 lbs/ft
T140AK300X50	T140AK300X100	3"	76mm	3.54"	90mm	450 PSI	15"	1.95 lbs/ft
T140AK400X50	T140AK400X100	4"	102mm	4.65"	118mm	450 PSI	20"	2.75 lbs/ft
