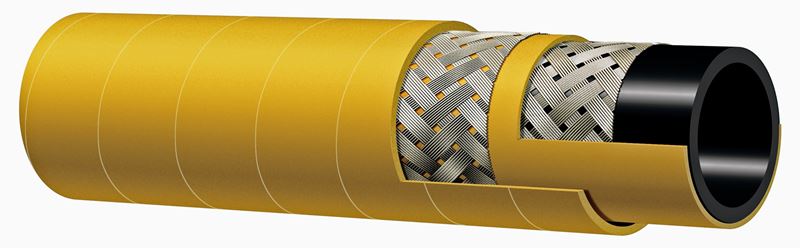

T146AK125X50 Alfagomma by Kuriyama | T146AK Series | MSHA Mine Spray Hose | 1-1/4" ID | 1.61" OD | 1000 PSI | Yellow | 50ft Length

T146AK125X50 Alfagomma by Kuriyama | T146AK Series | MSHA Mine Spray Hose | 1-1/4" ID | 1.61" OD | 1000 PSI | Yellow | 50ft Length

Save $96.71 Save $96.71
$322.43
$322.43 - $322.43
$322.43
$225.72
$225.72 - $225.72
$225.72

Kuriyama of America Inc.
Alfagomma | T146AK Series | Braided MSHA Mine Spray Hose

For underground mine water spray for dust control. Also usable on continuous mining machinery.

Package Quantity: 50 Foot

Specifications for Variant SKU: T146AK125X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T146AK Series
Hose Color(s): Yellow
Internal Diameter: 1.25in - 1-1/4in
Outer Diameter: 1.61in
Tubing Construction: SBR/Nitrile Blend
Cover Construction: SBR/Nitrile Blend
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Underground mine water spray for dust control. Also usable on continuous mining machinery.
Other Ratings: - Tube: Black Extruded SBR/NBR blend - oil mist resistant.
Reinforcement: High tensile steel wire braids. Cover: Yellow SBR/NBR blend - abrasion, ozone, hydrocarbon and fire resistant - pin pricked.
Service Temperature Range: -22°F (-30°C) to +200°F (+90°C) Coupling Suggestions: Permanently attached crimped hydraulic couplings.
Branding: ALFAGOMMA - ITALY - 70 BAR (1000 PSI) MINE SPRAY MSHA IC - 152/6 (embossed)
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T146AK075X50 T146AK075X100 3/4" 19mm 1.10" 28mm 1000 PSI 3-3/4" 0.45 lbs/ft
T146AK100X50 T146AK100X100 1" 25mm 1.34" 34mm 1000 PSI 5" 0.58 lbs/ft
T146AK125X50 T146AK125X100 1-1/4" 32mm 1.61" 41mm 1000 PSI 6-1/4" 0.75 lbs/ft
T146AK150X50 T146AK150X100 1-1/2" 38mm 1.93" 49mm 1000 PSI 7-1/2" 1.08 lbs/ft
T146AK200X50 T146AK200X100 2" 51mm 2.48" 63mm 1000 PSI 10" 1.47 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
