T2010B ZSi-Foster | Beta Clamp Stacking Kit | Twin Series | For 5/8" x 5/8" Tube | Polypropylene/Steel

T2010B by ZSi-Foster | Beta Clamp Stacking Kit | Twin Series | For 5/8" x 5/8" Tube | Polypropylene/Steel

Save $0.44 Save $0.44
$3.94
$3.94 - $3.94
$3.94
$3.50
$3.50 - $3.50
$3.50

ZSI-Foster
Beta Hydraulic Clamps - Twin Series - Clamp Stacking Kit Assembly - Polypropylene/Steel

- Cushions are Polypropylene (Green Color).

- Ideal for general-duty applications subject to moderate levels of shock and vibration.
Specifications for Variant SKU: T2010B ZSI-Foster
Series: Twin Series
Maximum Clamp I.D.: 0.625
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

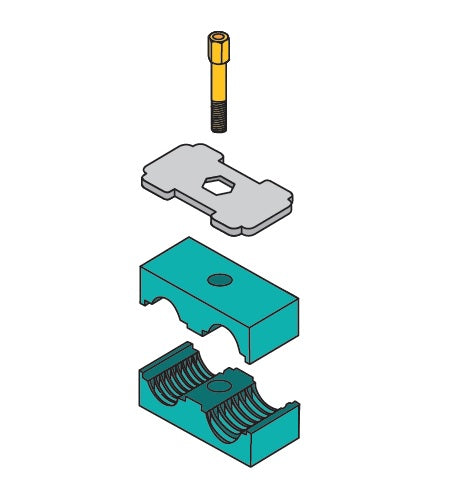

Assembly Includes:
Quantity Description
1 Each Stacking Bolt
1 Each Cover Plate
1 Set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- T1007B 1/8" x 1/8" 1/4-20 x 1-3/8
T1004B T2009B 1/4" x 1/4" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T1006B T2011B 3/8" x 3/8" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T2008B T3014B 1/2" x 1/2" Tube: 5/16-18 x 1-3/8
Pipe: 5/16-18 x 1-3/4
T2010B - 5/8" x 5/8" 5/16-18 x 1-3/8
T3012B T4017B 3/4" x 3/4" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2
T3015B - 7/8" x 7/8" 5/16-18 x 1-3/4
T3016B T5021B 1" x 1" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2-3/8
T4018B - 1-1/8" x 1-1/8" 5/16-18 x 2
T5020B T5027B 1-1/4" x 1-1/4" 5/16-18 x 2-3/8
T5024B - 1-1/2" x 1-1/2" 5/16-18 x 2-3/8
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
