T2010S-SS ZSi-Foster | Weld Mount Beta Clamp | Twin Series 5/8" x 5/8" Tube | Polypropylene/304 Stainless Steel

T2010S-SS by ZSi-Foster | Weld Mount Beta Clamp | Twin Series 5/8" x 5/8" Tube | Polypropylene/304 Stainless Steel

Save $2.18 Save $2.18
$19.65
$19.65 - $19.65
$19.65
$17.47
$17.47 - $17.47
$17.47

ZSI-Foster
Beta Hydraulic Clamps - Twin Series - Weld Mount - Polypropylene/304 Stainless Steel

- Cushions are Polypropylene (Green Color).

- Ideal for general-duty applications subject to moderate levels of shock and vibration.
Specifications for Variant SKU: T2010S-SS ZSI-Foster
Series: Twin Series
Maximum Clamp I.D.: 0.625
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: 304 Stainless Steel
  • Cushion: Polypropylene (Green)
Installation:

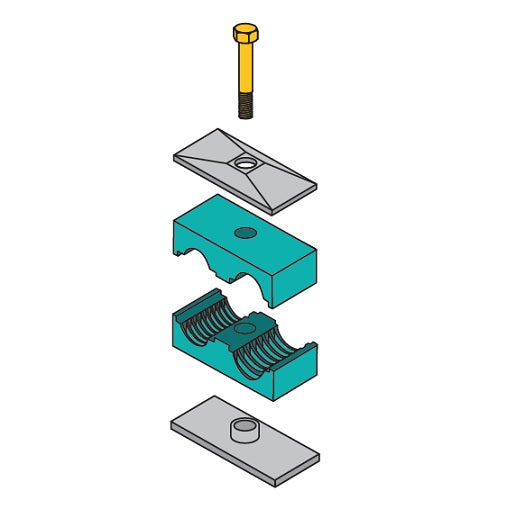

Assembly Includes:
Quantity Description
1 Each Hex Bolt
1 Each Cover Plate
1 Set Cushions
1 Each Weld Plate
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- T1007S-SS 1/8" x 1/8" 1/4-20 x 1-3/8
T1004S-SS T2009S-SS 1/4" x 1/4" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T1006S-SS T2011S-SS 3/8" x 3/8" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T2008S-SS T3014S-SS 1/2" x 1/2" Tube: 5/16-18 x 1-3/8
Pipe: 5/16-18 x 1-3/4
T2010S-SS - 5/8" x 5/8" 5/16-18 x 1-3/8
T3012S-SS T4017S-SS 3/4" x 3/4" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2
T3015S-SS - 7/8" x 7/8" 5/16-18 x 1-3/4
T3016S-SS T5021S-SS 1" x 1" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2-3/8
T4018S-SS - 1-1/8" x 1-1/8" 5/16-18 x 2
T5020S-SS T5027S-SS 1-1/4" x 1-1/4" 5/16-18 x 2-3/8
T5024S-SS - 1-1/2" x 1-1/2" 5/16-18 x 2-3/8
