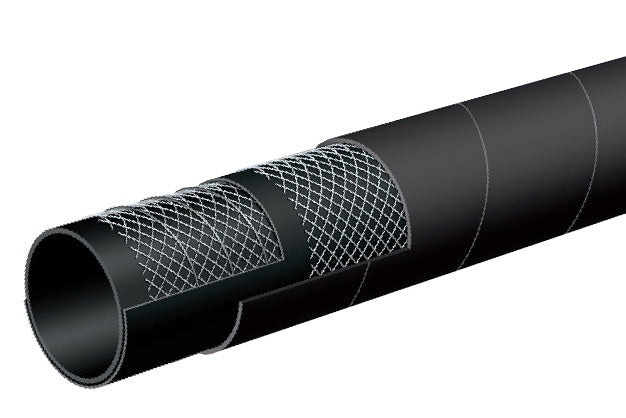

T202AA100X100 Alfagomma by Kuriyama | T202AA Evolution Series | General Purpose Water Suction & Discharge Hose | 1" ID | 1.42" OD | 150 PSI | Black | 100ft

T202AA100X100 Alfagomma by Kuriyama | T202AA Evolution Series | General Purpose Water Suction & Discharge Hose | 1" ID | 1.42" OD | 150 PSI | Black | 100ft Length

Save $115.18 Save $115.18
$504.49
$504.49 - $504.49
$504.49
$389.31
$389.31 - $389.31
$389.31

Kuriyama of America Inc.
Alfagomma | T202AA Evolution Series | 150 PSI General Purpose Water Suction & Discharge Hose

A durable hose engineered for efficient water suction and delivery. Perfect for irrigation systems, construction sites, and agricultural use - capable of handling fertilizers and mild acid solutions with ease.

Package Quantity: 100 Foot

Specifications for Variant SKU: T202AA100X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T202AA Series
Hose Color(s): Black
Internal Diameter: 1in
Outer Diameter: 1.42in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: Water suction and delivery hose. Suction and discharge of non-corrosive liquids for irrigation, construction, fertilizers and lasso acid solutions. SAE Rating: -
Other Ratings: - Tube: Black EPDM.
Reinforcement: : Spiraled high tensile textile cords with flexible steel helix wire. Cover: Black EPDM - abrasion and ozone resistant.
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA - ITALY - 202 EVOLUTION 10 BAR (150 PSI) GENERAL PURPOSE EPDM (in green letters)
Part Number
20ft		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working Pressure		 Vacuum Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI inHg (in) lbs/ft
- - - T202AA100X100 1" 25mm 1.42" 36mm 150 psi 30" 2 0.48 lbs/ft
- - - T202AA125X100 1-1/4" 32mm 1.69" 43mm 150 psi 30" 2.5 0.58 lbs/ft
- - - T202AA150X100 1-1/2" 38mm 1.93" 49mm 150 psi 30" 3 0.68 lbs/ft
- - - T202AA200X100 2" 51mm 2.44" 62mm 150 psi 30" 4 0.88 lbs/ft
- - - T202AA250X100 2-1/2" 63mm 2.99" 76mm 150 psi 30" 7.5 1.36 lbs/ft
- - - T202AA300X100 3" 76mm 3.50" 89mm 150 psi 30" 9 1.61 lbs/ft
- - - T202AA350X100 3-1/2" 90mm 4.02" 102mm 150 psi 30" 10.5 1.82 lbs/ft
- - - T202AA400X100 4" 102mm 4.57" 116mm 150 psi 30" 12 2.22 lbs/ft
T202AA500X20 - T202AA500X50 - 5" 127mm 5.55" 141mm 150 psi 25" 18 3.18 lbs/ft
T202AA600X20 T202AA600X25 T202AA600X50 T202AA600X100 6" 152mm 6.61" 168mm 150 psi 25" 24 3.59 lbs/ft
T202AA800X20 T202AA800X25 - - 8" 203mm 8.70" 221mm 150 psi 25" 32 6.64 lbs/ft
T202AA1000X20 - - - 10" 254mm 10.71" 272mm 150 psi 25" 50 9.09 lbs/ft
T202AA1200X20 - - - 12" 305mm 12.87" 327mm 150 psi 25" 61 12.54 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
