T23-6X6 Couplamatic T Series Coupling - SAE 45° - 90° Female Swivel - 3/8" Hose ID - 5/8x18 Thread Size

T23-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x 5/8x18 Thread Size SAE 45° Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Save $28.36

$70.90

$70.90 - $70.90

$70.90

$42.54

$42.54 - $42.54

$42.54

Couplamatic Systems Inc.
T Series - SAE 45° Seat - 90° Female Swivel

Package Quantity: 5 EA

Specifications for Variant SKU: T23-6X6 Couplamatic \| 5 \|
Series:	T Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female SAE 45 Flare, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

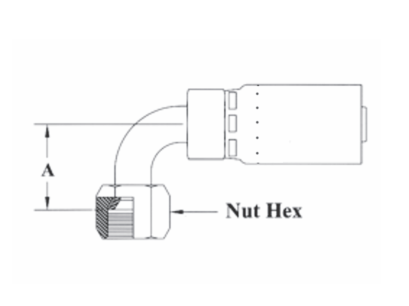

Part Number	Hose ID	Tube Size	Thread Size	A-Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	A-Drop Inches	Nut Hex	Weatherhead E
T23-5X6	5/16"	3/8"	5/8x18	0.91"	3/4"	05E-466
T23-6X6	3/8"	3/8"	5/8x18	0.91"	3/4"	06E-466

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
