T26-8X10 Couplamatic T Series Coupling - JIC/SAE Dual Seat - 90° Female Swivel - 1/2" Hose ID - 7/8x14 Thread Size

T26-8X10 by Couplamatic | T Series Coupling | 1/2" Hose ID x 7/8x14 Thread Size JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $74.01 Save $74.01
$185.03
$185.03 - $185.03
$185.03
$111.02
$111.02 - $111.02
$111.02

Couplamatic Systems Inc.
T Series - JIC/SAE Dual Seat - 90° Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: T26-8X10 Couplamatic | 10 |
Series: T Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb, 5/8in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

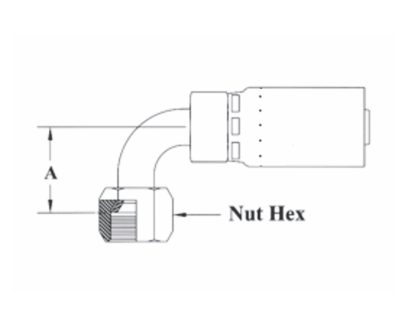

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Weatherhead E
T26-4X4 1/4" 1/4" 7/16x20 0.81" 9/16" 04E-664
T26-4X5 1/4" 5/16" 1/2x20 0.83" 5/8" 04E-665
T26-5X6* 5/16" 3/8" 9/16x18 0.910" 11/16" 05E-666
T26-6X6* 3/8" 3/8" 9/16x18 0.910" 11/16" 06E-666
T26-6X8 3/8" 1/2" 3/4x16 1.15" 7/8" 06E-668
T26-8X8 1/2" 1/2" 3/4x16 1.15" 7/8" 08E-668
T26-8X10 1/2" 5/8" 7/8x14 1.23" 1" 08E-670
T26-12X12* 3/4" 3/4" 1-1/16x12 1.88" 1-1/4" 12E-672
T26-16X16* 1" 1" 1-5/16x12 2.20" 1-1/2" 16E-676

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
